Tube CNC Cutting Machine with Plasma and Flame

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Send Inquiry Chat Now

Category: Plasma Cutting Machine

Description
Reviews (1)

iGP-S

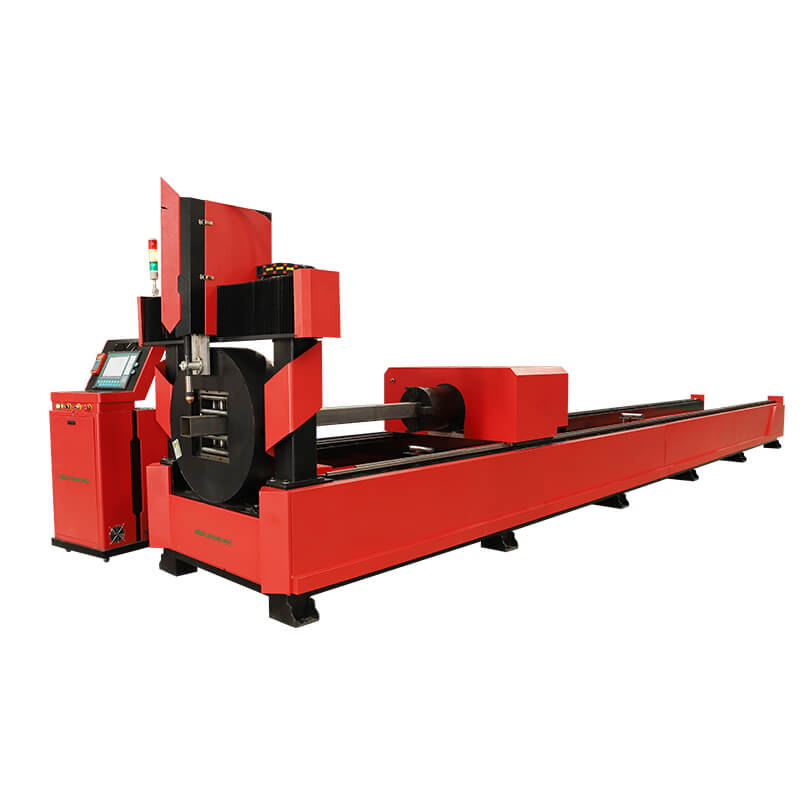

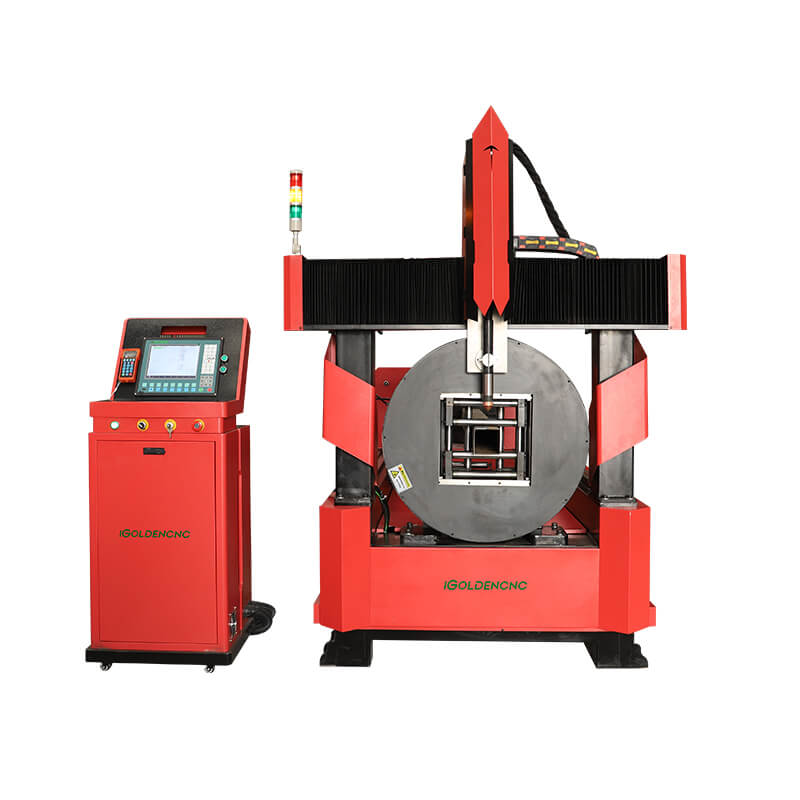

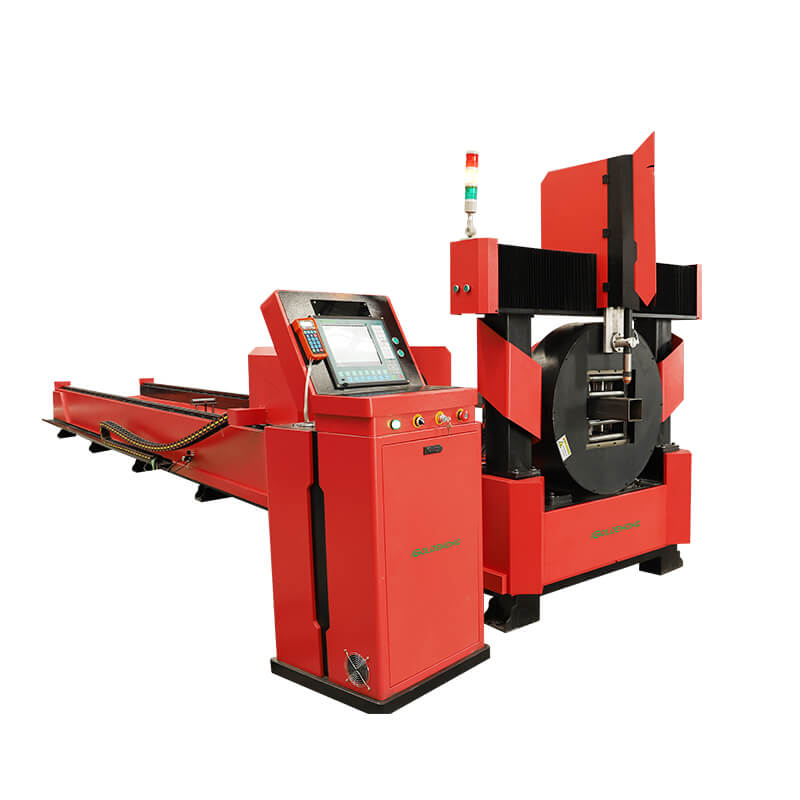

CNC Plasma Tube Cutting Machine

Plasma cutting machine is a machine that processes metal materials with the help of plasma cutting technology. Fast cutting speed, small deformation, smooth cutting surface, small thermal deformation, almost no heat affected zone, can be cut square tube, round tube;Standard equipped with two modes of plasma cutting and flame cutting, integrated structure, bilateral drive, fast cutting speed, low inertia and stable operation.

Can flame cut low carbon steel, can also plasma cut high carbon steel, stainless steel, aluminum, copper and other non-ferrous metals; Can be customized according to customers;

Widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler pressure vessel, locomotive and other industries.

CNC Plasma Square Tube Cutter Features

Used for cutting metal square pipe. The LCD operation panel can prompt a variety of operation modes, making the operation more convenient and simple, and can cut the metal into various complex shapes;
Frame adopts thick wall section steel welded bed, more solid and stable;
High precision Taiwan square guide rail, high efficiency rack and pinion, carburized and quenched surface;
low noise, stable and accurate coordinate movement;
The drive system adopts Japanese Yaskawa servo type to ensure the whole machine in a wider speed range, short acceleration time and stable operation;
The torch height controller can automatically adjust the optimal cutting distance to ensure high precision workpiece cutting.

TECHNICAL PARAMETER

Model	iGP-S
Pipe size	1501508000mm
Bed	Heavy duty pipe welded bed
Reduction	Shimpo
Servo motor	Japan Yaskawa
Driving system	X,Z axis ,Push axis 400w,Rotary axis 750w Pneumatic Cutting Chuck , dual driver , two chucks can work at same time , to confirm cutting precision
Control system	Fangling
Plasma power	Huayuan/Hypon
Transmission model	X,Y reducer,z ball screw
Transmission	Anti-friction Gear-wheel
Cutting speed	15-20m/min
Cutting thickness	Max 10mm
Process precision	±0.3mm
Repeat positioning accuracy	±0.05mm
Input voltage	3 phase 380V for power source,single phase,220V for machine
Gross Power	20KW

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

Plasma cutting head

Fangling control system

Huayuan LGK plasma source

Guide rail

Application of Portable Plasma Tube Cutting Machine

Applicable materials: Can cut a variety of metals, including but not limited to aluminum, iron, galvanized (steel) plate, low carbon steel, titanium plate. Stainless steel, iron, etc.

Applicable industry:

Advertising: advertising signs, sign making, decorative products, advertising and the production of various metal materials.

Mold industry: Engraving copper, aluminum, iron and other metal mold.

Metal industry: Suitable for steel, carbon steel, stainless steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other metal plates, tubes.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What is a Plasma Cutter?

CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials.

In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

Plasma Cutting vs Flame Cutting?

Plasma Cutting vs Flame Cutting

Plasma cutting can’t cut as thick material as Flame Cutting
Plasma cutting imparts less heat into the profile, resulting in a significantly reduced Heat Affected Zone on the cut edges
Plasma cutting has a cleaner cut edge
Plasma cutting can cut smaller holes due to a lower kerf (width of material removed by the cutting process)
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head).

Plasma Cutting vs Laser Cutting

Plasma cutting can cut the same and greater thicknesses of material than Laser Cutting
Both can have comparable heat affected zones
Both can have a comparable cleanliness of cut edge
Plasma cutting can have a lower kerf (width of material removed by the cutting process
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head
Plasma cutting is not affected by the reflective properties of a material, Laser Cutting is not possible with polished or highly reflective materials.

How to Operate a Plasma Cutter?

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity.

When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.

Software Used to Operate the Plasma Cutter

The software that comes with the plasma cutter is indubitably one of the most important parts of the machine. It allows the operator to successfully design, cut, and control the operation of the plasma torch. To create top quality designs with the plasma cutter, the operator must use AutoCAD for the CAD part and EXG Code for the CAM portion. The software that actually controls the plasma usually comes along with the CNC plasma table.

CNC plasma cutting software STARCAM is very easy to operate. It consists of 3 modules, first drawing module (StarCAD), nesting module, (StarCUT), and numerical control emulation module (StarTEST). Any layman can read the manual and understand the working process. A short training is also given to the new user to make comprehend with the basics of a 4*8 plasma cutting machine. If you are interested in seeing the work process of this machine, you must read plasma machine software in action.

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.
