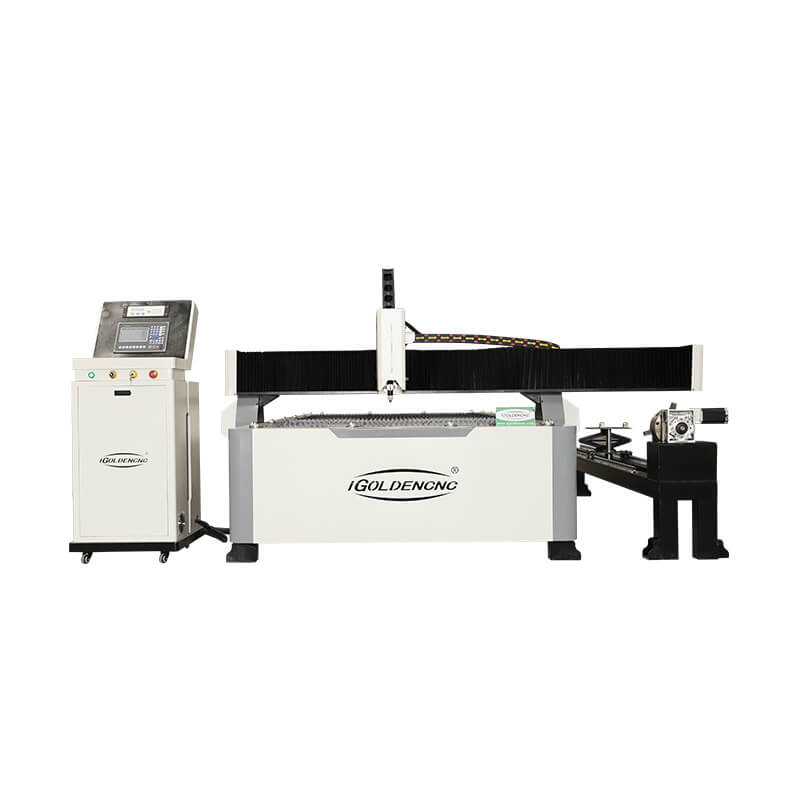

CNC Tube And Sheet Plasma Cutting Machine

Our CNC Plasma Table With Tube Cutter are designed to boost your bottom line by including a pipe handling system with pipe cutting software and plasma cutting technology. The result of this unique innovation is a pipe cutting machine built to streamline your process and improve efficiency.

Send Inquiry Chat Now

Category: Plasma Cutting Machine

Description
Reviews (0)

iGP-4A 1325

Plasma Cutting Machine+Rotation Axis

.Plasma cutting machine is a machine that processes metal materials with the help of plasma cutting technology. Fast cutting speed, small deformation, clean cutting surface, small thermal deformation, almost no heat affected zone，Adding the rotating shaft device can cut the pipe and realize the processing of different processes;

Can flame cutting low carbon steel, can also plasma cutting high carbon steel, stainless steel, aluminum, copper and other non-ferrous metals; Can be customized according to customers, such as cutting pipe to increase rotation axis, increase marking and so on.

Widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler pressure vessel, locomotive and other industries.

CNC Plasma Cutting Machine Features

1.Adopt gantry structure, double drive linear guide rail, increase the rotation axis configuration can be processed plate and pipe;Gantry structure, double drive, increase working stability and accuracy; Double lifting device, simple operation, smooth;

2.The collision prevention device, prevent the spear damage when suddenly loses power;

3.High precision high-speed rack driving, low noise, smooth and accurate coordinate movement;

4.Are suitable for all kinds of different materials and different plate thickness of cutting.

TECHNICAL PARAMETER

Model	iGP-3A-1530
Working area	1500*3000mm
Machine body	Thickened Square Tube Welding Body
Worktable	Sawtooth
Reducer	Japan SHIMPO
Control System	STARFIRE with THC
Plasma Power	HUAYUAN
Lubrication	Automatic
Transmission	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan Hiwin guide rail
Drive system	Leadshine servo motor and drivers
Power	63A/ 100A/120A/160A/200A
Cutting Torch Path	≤150mm
Positioning Accuracy	0.1mm
Working Voltage	380V/50Hz
Dimensions	369422901533mm
Package size	390022702050mm

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

Application of Portable Plasma Tube Cutting Machine

.Plasma CNC cutters are used for cutting sheet metals, square and round metal tubes, including iron, cold rolled steel, hot rolled steel, stainless steel, galvanized steel, carbon steel, copper, brass, alloy, bronze, aluminum, titanium. Plasma machines are widely used in the industries of machine tool manufacturing, petro-chemical equipment, light-industrial machinery, pressure vessel, shipbuilding, mining machinery, electric power, bridge construction, aerospace, steel structure, etc.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What is a Plasma Cutter?

CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials.

In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

Plasma Cutting vs Flame Cutting?

Plasma Cutting vs Flame Cutting

Plasma cutting can’t cut as thick material as Flame Cutting
Plasma cutting imparts less heat into the profile, resulting in a significantly reduced Heat Affected Zone on the cut edges
Plasma cutting has a cleaner cut edge
Plasma cutting can cut smaller holes due to a lower kerf (width of material removed by the cutting process)
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head).

Plasma Cutting vs Laser Cutting

Plasma cutting can cut the same and greater thicknesses of material than Laser Cutting
Both can have comparable heat affected zones
Both can have a comparable cleanliness of cut edge
Plasma cutting can have a lower kerf (width of material removed by the cutting process
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head
Plasma cutting is not affected by the reflective properties of a material, Laser Cutting is not possible with polished or highly reflective materials.

How to Operate a Plasma Cutter?

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity.

When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.

Software Used to Operate the Plasma Cutter

The software that comes with the plasma cutter is indubitably one of the most important parts of the machine. It allows the operator to successfully design, cut, and control the operation of the plasma torch. To create top quality designs with the plasma cutter, the operator must use AutoCAD for the CAD part and EXG Code for the CAM portion. The software that actually controls the plasma usually comes along with the CNC plasma table.

CNC plasma cutting software STARCAM is very easy to operate. It consists of 3 modules, first drawing module (StarCAD), nesting module, (StarCUT), and numerical control emulation module (StarTEST). Any layman can read the manual and understand the working process. A short training is also given to the new user to make comprehend with the basics of a 4*8 plasma cutting machine. If you are interested in seeing the work process of this machine, you must read plasma machine software in action.

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.
