CNC Plasma Cutting Table With Marking and Drilling

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

CNC marking machine is able to achieve high quality CNC marking function for hard materials to draw lines marking. Compare with the laser,the cost,marking format,process control,and marking depth of IGP-1325 CNC table plasma cutting machine has a distinct advantage.Marking depth adjustable functions to draw lines, the greater the pressure,the depper draw lines.

Send Inquiry Chat Now

Category: Plasma Cutting Machine

Description
Reviews (1)

iGP-4A 1530

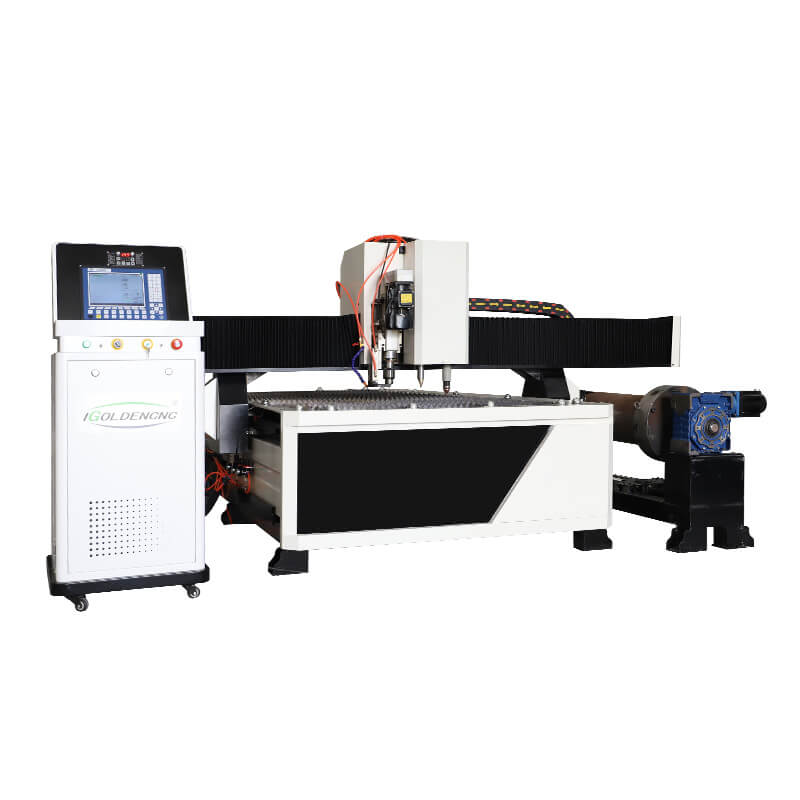

Plasma Cutting Machine With Marking and Drilling Heads

CNC table plasma cutting machine is an multi-purpose machine. It is very easy to deal with multi-processing needs! CNC plasma cutting machine can marking metal and oxy-fuel cutting!

IGP-1325 Muti-function Plasma machine is a perfect solution for cutting sheet metal and tubing materials. It contains two parts: the main construction and the pipe cutter attachment. The former is a conventional table type plasma cutting machine, which is used to meet the cutting requirements of various metal plates. The pipe cutting attachment is a rotary system for cutting, notching, and piercing with square/round pipes. It comes with one plasma cutting torch in our default version.

CNC Plasma Cutting Machine Features

1) The beam uses light structural design,with good rigidity structure, light deadweight .

2) The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3) Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4) Cutting mouth is small, tidy,and avoid a second dressing processing.

5) The numerical control system disposes high, the automatic striking arc, the performance is stable.

TECHNICAL PARAMETER

Working area	1300x2500mm
Torch height controller	with
Working table	Saw tooth table
Plasma power supply	Hypertherm 125A
Cooling system	Air cooling
Control system	F2300A control system
Flies transfer	USB interface
Transmission	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan Hiwin guide rail
Drive system	Japan servo motor and drivers
Arc	Untouched Arc Striking
Traveling speed	0-40000mm/min
Working speed	According to the cutting thickness
Working voltage	Single phase 220V and 3 phase 380V/50HZ
Software	Fastcam
Rotary axis	With
Drilling head	With
Marking head	With

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

Application of Portable Plasma Tube Cutting Machine

.Plasma CNC cutters are used for cutting sheet metals, square and round metal tubes, including iron, cold rolled steel, hot rolled steel, stainless steel, galvanized steel, carbon steel, copper, brass, alloy, bronze, aluminum, titanium. Plasma machines are widely used in the industries of machine tool manufacturing, petro-chemical equipment, light-industrial machinery, pressure vessel, shipbuilding, mining machinery, electric power, bridge construction, aerospace, steel structure, etc.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What is a Plasma Cutter?

CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials.

In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

Plasma Cutting vs Flame Cutting?

Plasma Cutting vs Flame Cutting

Plasma cutting can’t cut as thick material as Flame Cutting
Plasma cutting imparts less heat into the profile, resulting in a significantly reduced Heat Affected Zone on the cut edges
Plasma cutting has a cleaner cut edge
Plasma cutting can cut smaller holes due to a lower kerf (width of material removed by the cutting process)
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head).

Plasma Cutting vs Laser Cutting

Plasma cutting can cut the same and greater thicknesses of material than Laser Cutting
Both can have comparable heat affected zones
Both can have a comparable cleanliness of cut edge
Plasma cutting can have a lower kerf (width of material removed by the cutting process
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head
Plasma cutting is not affected by the reflective properties of a material, Laser Cutting is not possible with polished or highly reflective materials.

How to Operate a Plasma Cutter?

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity.

When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.

Software Used to Operate the Plasma Cutter

The software that comes with the plasma cutter is indubitably one of the most important parts of the machine. It allows the operator to successfully design, cut, and control the operation of the plasma torch. To create top quality designs with the plasma cutter, the operator must use AutoCAD for the CAD part and EXG Code for the CAM portion. The software that actually controls the plasma usually comes along with the CNC plasma table.

CNC plasma cutting software STARCAM is very easy to operate. It consists of 3 modules, first drawing module (StarCAD), nesting module, (StarCUT), and numerical control emulation module (StarTEST). Any layman can read the manual and understand the working process. A short training is also given to the new user to make comprehend with the basics of a 4*8 plasma cutting machine. If you are interested in seeing the work process of this machine, you must read plasma machine software in action.

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.

1 review for CNC Plasma Cutting Table With Marking and Drilling

Rated 5 out of 5

Josef – April 8, 2024

I want to buy an entry level CNC plasma table. My budget is limited, so I need an affordable CNC plasma table. This hobbyist CNC plasma cutter can meet my requirements.
