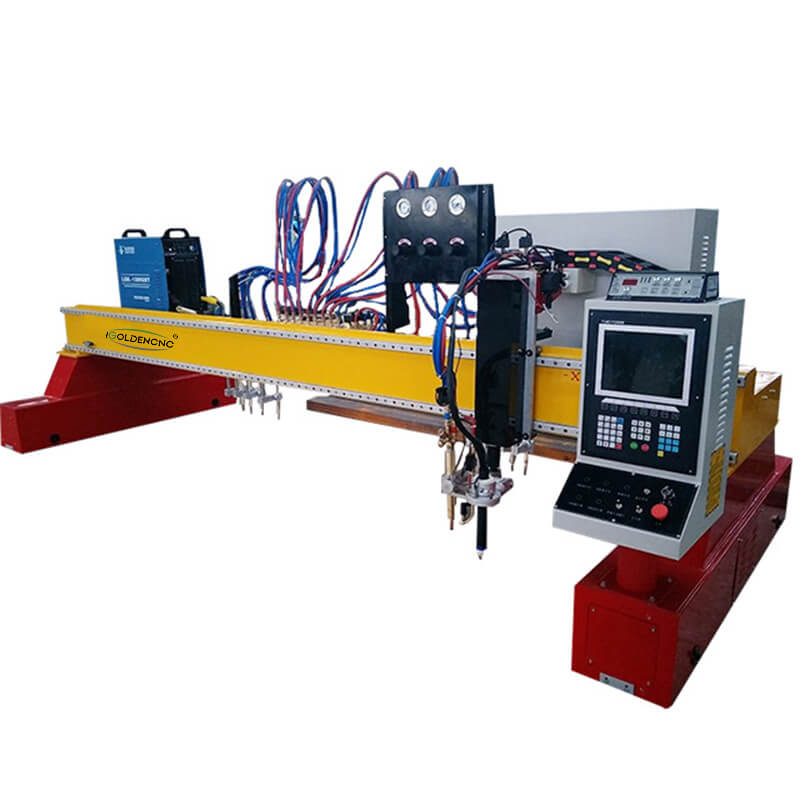

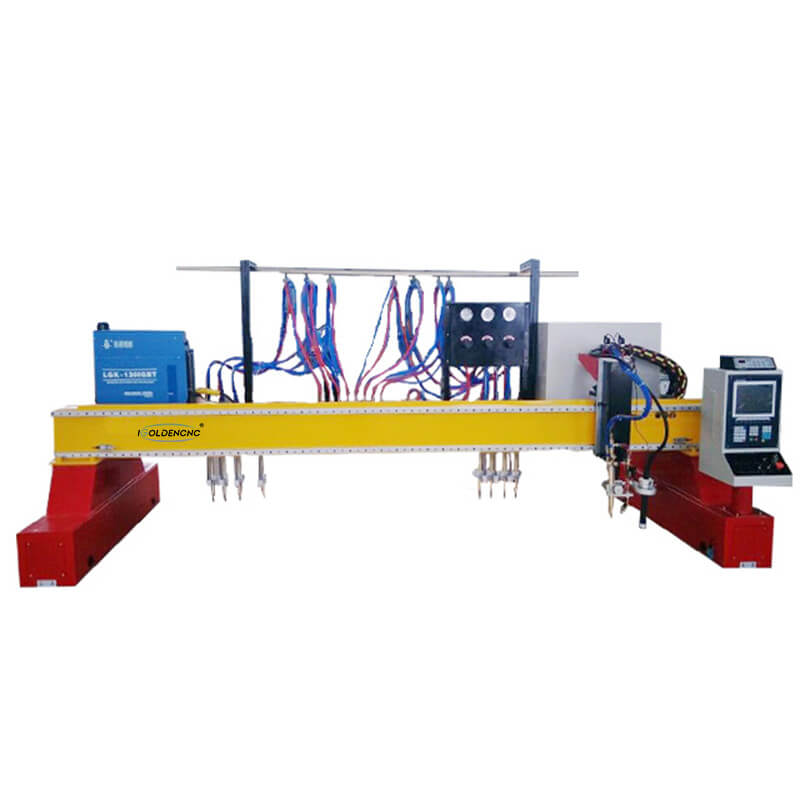

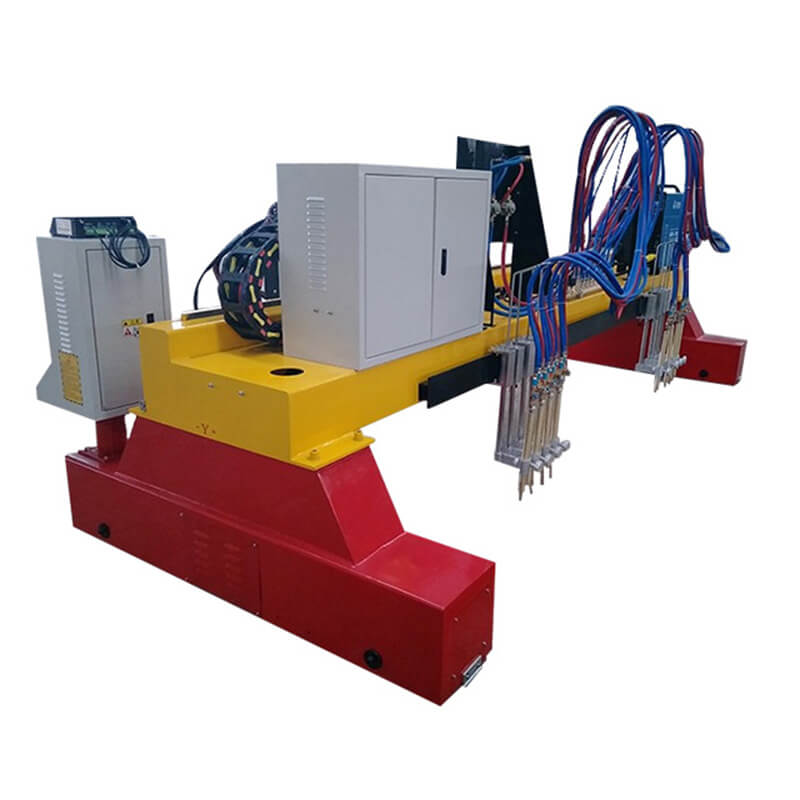

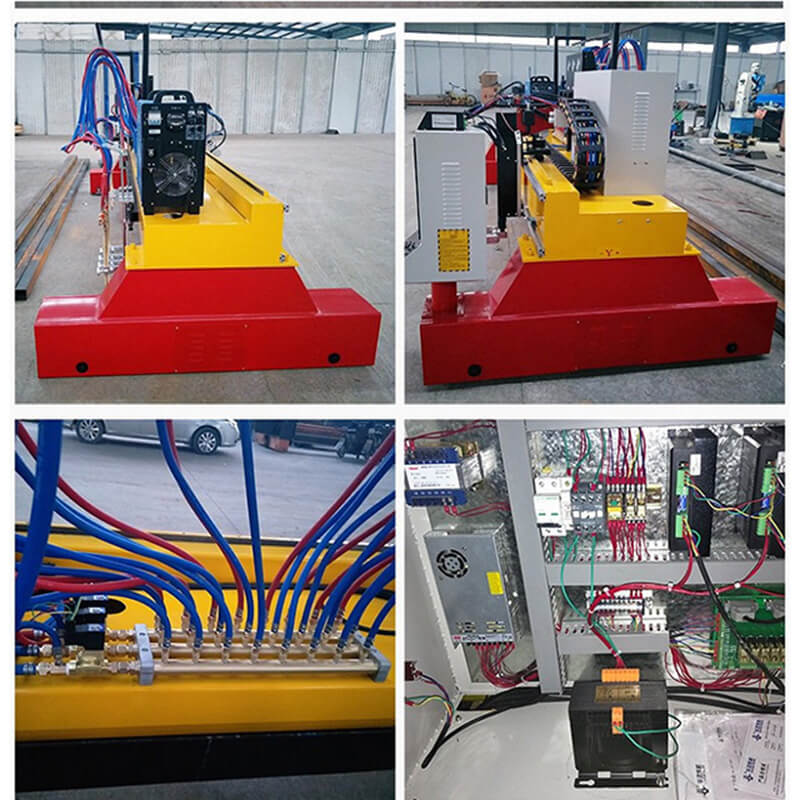

Gantry CNC Plasma Flame Cutting Machine

Gantry Cnc Plasma and Flame Cutting Machine is a high-efficiency, high-precision, and high-reliability multifunctional thermal cutting automation equipment that combines computer control, tight mechanical transmission, oxygen gas cutting or plasma cutting technology.

This model is small in size, light in weight and easy to operate. Has a very high-cost performance. We set the automatic high arc pressure adjusting device: when the plate shape changes a little during processing, the spearhead will adjust itself to avoid damage to the plate.Gantry Pipe and Plateintersection cutting machine can achieve two kinds of tube and plate cutting method, can greatly save customers cost.

Features and Advantages of Gantry Plasma Cutting Machine

1.The bed part adopts a rectangular parallelepiped frame structure, and a rotating shaft is provided on the left end stage to cut both round tubes and flat plates.

2.The machine tool adopts high rigidity design and undergoes secondary aging treatment to fully eliminate internal stress. The precision of the machine tool is stable for a long time, ensuring the cutting precision of the whole machine.

3.The moving beam of the machine tool adopts a square tube welding structure. The overall rigidity is good and the strength is high. Each guide surface is precision machined to ensure the correct positioning of each moving body. The dynamic performance during telling operation is better, greatly improving the cutting accuracy of the whole machine.

4.Using professional CNC cutting software, easy to learn, easy to use, reduce operator requirements, greatly improve work efficiency. With professional software, real-time processing of various graphics and text can be realized. Simple to use, flexible and convenient.

5.Unilateral drive at both ends adopts pull-out three-point positioning, bilateral drive adopts symmetrical treatment, and the center of gravity is stable, ensuring a good dynamic balance.

TECHNICAL PARAMETER

Lateral gauge (mm)	3000mm
Longitudinal gauge (mm)	8000mm
Flame torch group	1
Plasma torch group	1
Lifting device stroke	180mm
Drive System	Leadshine
Drive mode	Bilateral drive
Effective cutting width (mm)	2400mm
Effective cutting length (mm)	6500mm
Flame cutting thickness (mm)	6mm-200mm
Plasma cutting thickness	Depends on plasma size
Machine idle speed（mm/min）	6000mm-10000mm
Flame cutting speed（mm/min)	50-800mm/min
Surface cut roughness	Ra12.5-25μm

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

Flame cutting

Anti-tempering device, automatic/manual integrated height automatic ignition device.

Plasma cutting

Anti-collision device, arc voltage height adjustment device (automatically adjust the distance according to the height of the plate)

Dual-axis guide rail

Longitudinal 7-level high-precision rack

The chuck adopts 250# three-jaw chuck, and the support seat track adopts 24KG/M fine grinding track.Higher precision, better cutting quality and greater bearing capacity.

Advanced Plasma Power Supply

It adopts China’s well-known industrial brand Huayuan industrial plasma power supply. Precise cutting, no burrs, and small bevel. Energy-saving, low consumption, more stable performance.

Fangling F-2300A CNC Operating System

Arc voltage height controller

Digital control, easy to learn and operate, anti-high frequency electromagnetic interference, stable performance.

Application of CNC Plasma Cutting Machines

Gantry cnc plasma cutting machine is specially designed for sheet metal fabrication, it is characterized of high automation and efficiency, easy operation and long service time.

Applicable Industries: Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building, Military Industrial,Wind Power,Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery,Environmental ProtectionEquipment,Ect.

Applicable Materials: Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel,Stainless Steel,Alloy Steel,

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What is a Plasma Cutter?

CNC cutter is a process that cuts through the electrically conductive material with the help of hot plasma. Plasma cutting machines use a high-velocity jet of ionized gas that is delivered from the orifice. Plasma conducts electricity from the torch of the plasma cutter to the workpiece and heats the object, thereby melting the material. The high-velocity stream of ionized gas mechanically blows the molten metal away, splitting the materials.

In the simplest term, plasma machine can be used in various types of conductive metals such as mild steel, aluminum, and stainless. The milder is the consistency of the steel; the operator can experience thicker as well as faster cuts.

Plasma Cutting vs Flame Cutting?

Plasma Cutting vs Flame Cutting

Plasma cutting can’t cut as thick material as Flame Cutting
Plasma cutting imparts less heat into the profile, resulting in a significantly reduced Heat Affected Zone on the cut edges
Plasma cutting has a cleaner cut edge
Plasma cutting can cut smaller holes due to a lower kerf (width of material removed by the cutting process)
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head).

Plasma Cutting vs Laser Cutting

Plasma cutting can cut the same and greater thicknesses of material than Laser Cutting
Both can have comparable heat affected zones
Both can have a comparable cleanliness of cut edge
Plasma cutting can have a lower kerf (width of material removed by the cutting process
Bevelled edges and 3 Dimensional sections can be processed by both processes (with the application of a 3rd axis or tilting head
Plasma cutting is not affected by the reflective properties of a material, Laser Cutting is not possible with polished or highly reflective materials.

How to Operate a Plasma Cutter?

A plasma cutters tables for sale is capable of cutting thick metal sheets in any shape and size. This computer-controlled machine gives instructions through a computer over the manual handheld plasma cutter. It is compatible with optional CNC parts and improves the accuracy, flexibility, and productivity.

When you purchase this plasma cutting machine, you will receive plasma cutting software that needs to be installed before operating the machine.

Software Used to Operate the Plasma Cutter

The software that comes with the plasma cutter is indubitably one of the most important parts of the machine. It allows the operator to successfully design, cut, and control the operation of the plasma torch. To create top quality designs with the plasma cutter, the operator must use AutoCAD for the CAD part and EXG Code for the CAM portion. The software that actually controls the plasma usually comes along with the CNC plasma table.

CNC plasma cutting software STARCAM is very easy to operate. It consists of 3 modules, first drawing module (StarCAD), nesting module, (StarCUT), and numerical control emulation module (StarTEST). Any layman can read the manual and understand the working process. A short training is also given to the new user to make comprehend with the basics of a 4*8 plasma cutting machine. If you are interested in seeing the work process of this machine, you must read plasma machine software in action.
