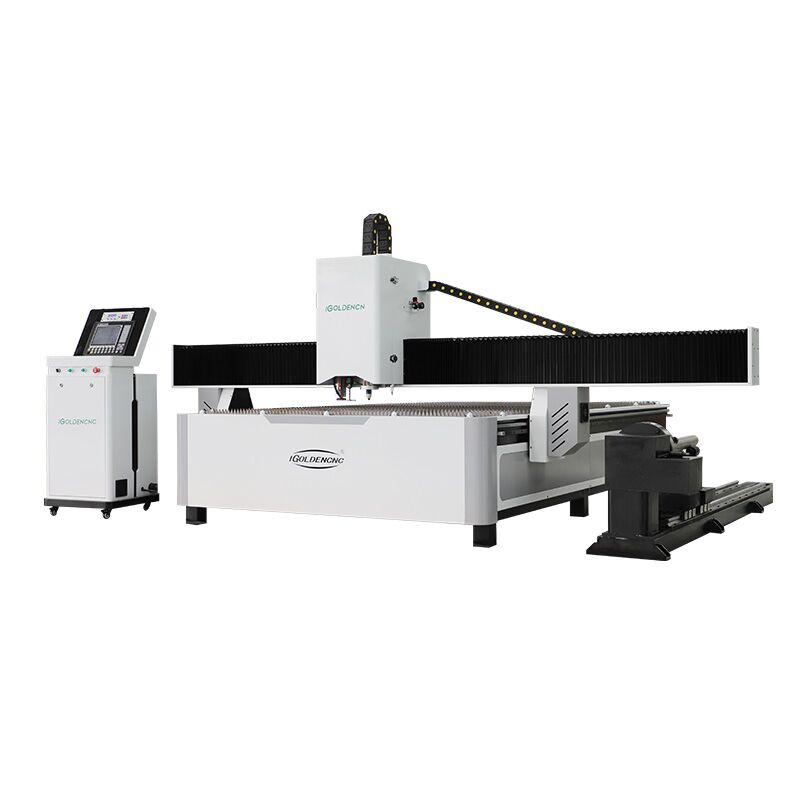

4 Axis Plasma Cutter for Round&Square Tube And Metal Sheet

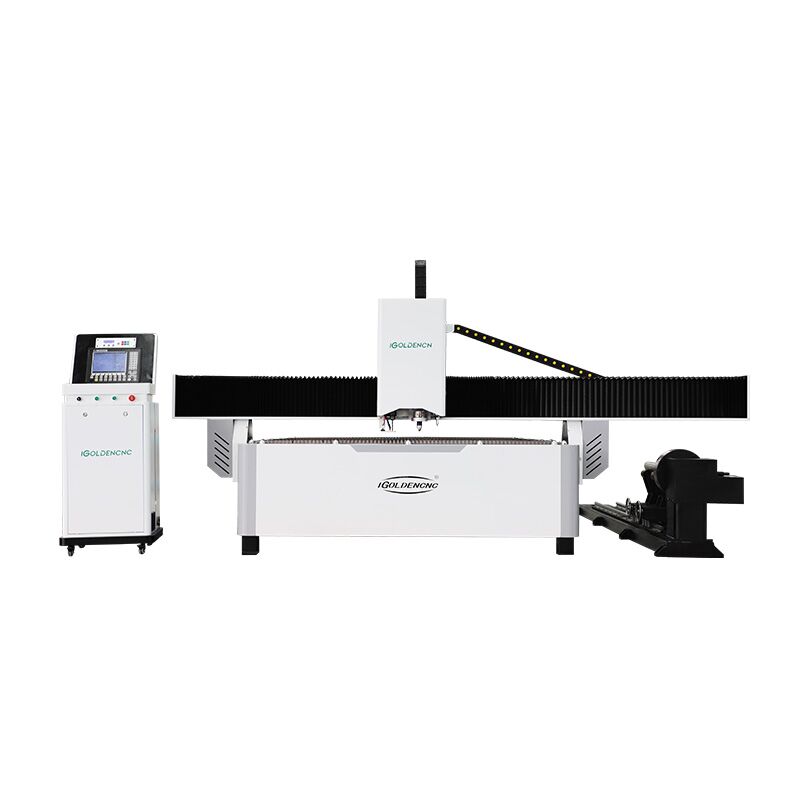

Hypertherm plasma cutter table with CNC controller is designed to cut both sheet metals and metal pipes with 4th rotary axis, the best 4×8 plasma table adopts Hypertherm to get a fine cutting of metals, and add a rotary device to cut metal tubes.The CNC system, servo system, and transmission system of the flame plasma cutting machine adopt internationally renowned brands, machines with excellent performance, convenient human-machine interface, friendly operation, powerful nesting software and high-quality hardware configuration.

Send Inquiry Chat Now

Description
Reviews (0)

iGP-4A

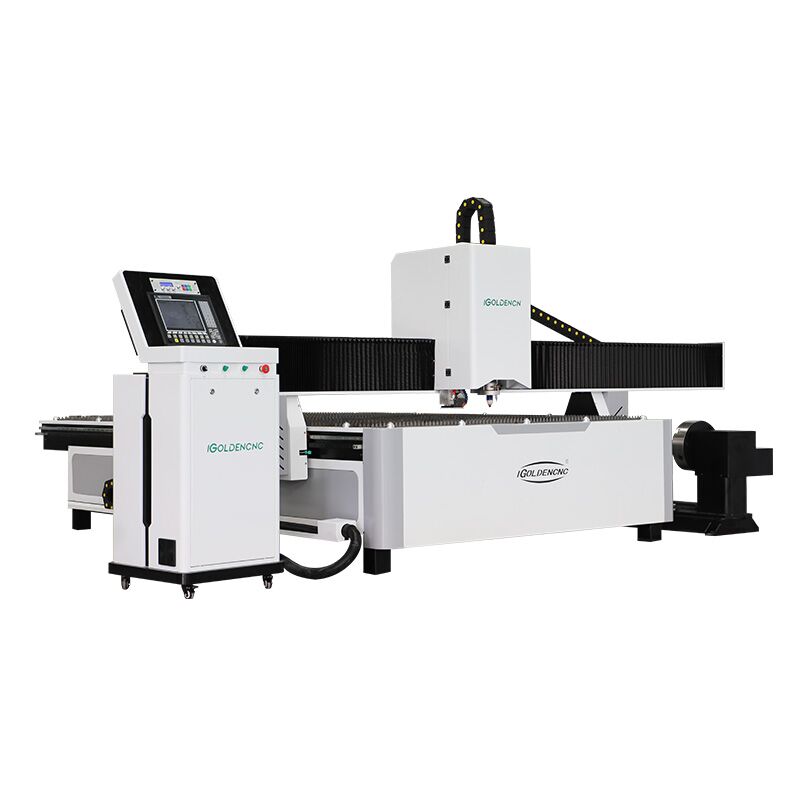

Plasma Cutting Machine+Rotation Axis

Plasma cutting machine is a machine that processes metal materials with the help of plasma cutting technology. Fast cutting speed, small deformation, clean cutting surface, small thermal deformation, almost no heat affected zone，Adding the rotating shaft device can cut the pipe and realize the processing of different processes;

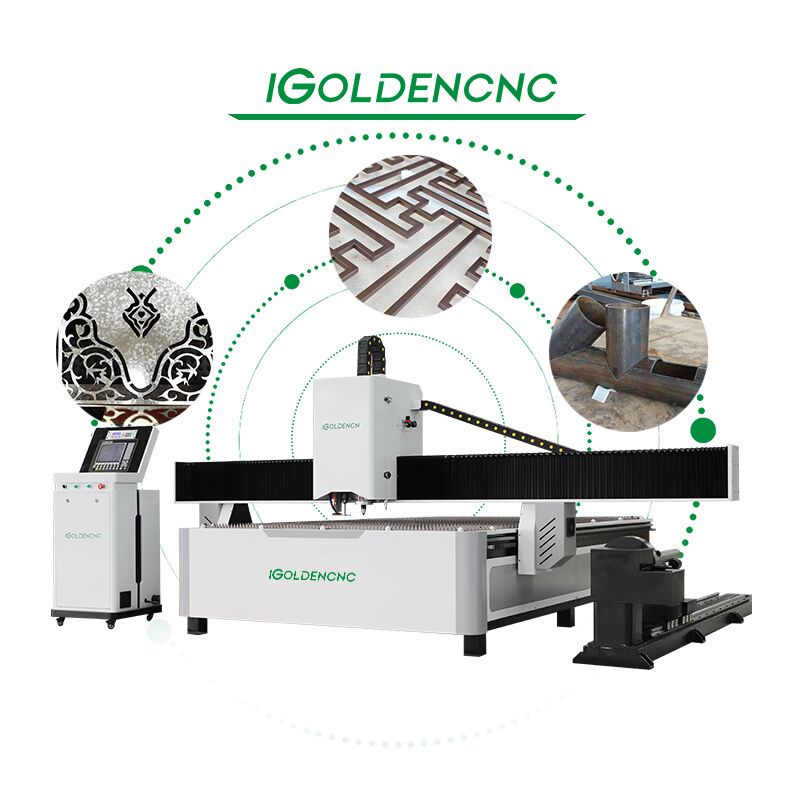

The CNC Plasma Cutter with 4th Axis Rotary for Square & Round Tubes is a professional-grade automatic CNC metal pipe cutter, designed for precise cutting of round pipes and square tubes. Equipped with Rotary Tube Pro software, this advanced machine is capable of cutting metals such as iron, steel, brass, copper, alloy, and more.

Hypertherm is a well-known American brand that makes Powermax plasma, plasma systems, consumables, CNC motion and h8 controllers for handheld and CNC plasma cutters & table kits. Hypertherm is trusted for high speed and accurate metal cutting performance and reliability, helping thousands of businesses to improve production efficiency and profitability. Hypertherm makes plasma cutting more precise, more economical, safer, and easier to use.

Benefits of 4 Axis Plasma Cutter

1. The CNC plasma oxy-fuel cutting table adopts welded lathe bed with thick profiled steel, which is more stable.

2. Top CNC system configuration, automatic arc, stable performance, the success rate is more than 99%.

3. The CNC plasma flame cutting table supports Fastcam, ARTCAM, Type3 software, which is easy to operate.

4. The plasma torch power supply supports all top brands.

5. The rotary device can be used for cutting round metal tube, the square tube cutting rotary is optional.

CNC Plasma Table Technical Parameter

Model	iGP-4A-1325
Working area	13002500mm,15003000mm
Machine body	Thickened Square Tube Welding Body
Worktable	Sawtooth
Reducer	Japan SHIMPO
Control System	STARFIRE with THC
Plasma Power	Hypertherm
Lubrication	Automatic
Transmission	X,Y-helical rack pinion, Z ball screw
Guide rail	Taiwan Hiwin guide rail
Drive system	Leadshine servo motor and drivers
Power	63A/ 100A/120A/160A/200A
Cutting Torch Path	≤200mm
Positioning Accuracy	0.2mm
Working Voltage	380V/50Hz
Dimensions	369422901533mm
Package size	390022702050mm

It is applied in all types of machinery, metal structure manufacturing, repair and installation service, sheet metal fabrication, hole drilling, digging and patching, beveling and more metal cutting projects & plans.

Get Price!

CNC Plasma Cutting Head

Plasma cutting head is a component of a CNC plasma cutting machine that is responsible for cutting materials with precision and accuracy. CNC plasma cutting is a manufacturing process that uses a high-velocity jet of ionized gas (plasma) to cut through electrically conductive materials such as steel, aluminum, copper, and other metals.

STARFIRE Control System Of 4×8 Plasma Table

This is the starfire control system,this controller has highly reliable design and it has the ability to resist plasma interference, lightning strikes, and surges.This controller has practical flame/plasma cutting process, during plasma processing, the corner speed control and height controller control are automatically completed;

Hypertherm Power Source

Hypertherm plasma cutter is a multifunctional automatic thermal metal cutting tool with high efficiency, high precision, and high reliability, which combines computer control, compact mechanical transmission, oxygen gas cutting, or plasma cutting technology.

4th Axis Rotary for Square&Round Tube

Application of 4 Axis Plasma Cutting Machine

Compared with mechanical cutting, plasma cutting is much faster and easier to cut metal. Its unique features of high speed, high efficiency, high kerf finish, and wide applicable cutting range make it easy to fast-cut carbon steel, mild steel, tool steel, stainless steel, silicon steel, aluminum, titanium, copper, brass, alloy, pickled sheet, galvanized sheet, iron, and more metal materials.

It is used in sheet metal & tube processing, aviation, electronics, shipbuilding, aerospace, elevators, subway parts & accessories, auto parts, machinery manufacturing, precision accessories, metallurgical equipment, tool making, household appliances, arts, crafts, gifts, advertising and decorations, and is gradually replacing the dominant position of flame cutting in some fields.

Contact Us Today to Get Price!

CNC Plasma Cutting Machine Buyer Guide

What materials can the Top Rated 4×8 CNC Plasma Table Kit with Rotary Tube Cutter cut?

This machine can cut a wide range of materials, including steel, stainless steel, aluminum, carbon steel, brass, copper, titanium, and alloys.

How Does A CNC Plasma Cutter Work?

Plasma cutting is a thermal machining method that uses the heat of a high-temperature ionized gas arc to melt at a metal workpiece, and to eliminate the molten metal by high-speed momentum to create a slit. They send an electric arc by using gas like oxygen, nitrogen or compressed air. This turns the gas to plasma, as well as it promptly blasts through metal to cut it with broadband. A flame cutting torch works by adding a blast of oxygen to the flame which oxidizes the metal and turns it into slag. The torch moves along a tool path with h8 control directed by a computer. The CNC implies that a computer is used to control the motion supported G-code in a program. Compared to handheld devices, plasma CNC cutters realize automatic machining with X, Y, and Z axis.

Can the plasma cutter machine rotary tube cutter handle different pipe sizes?

Yes, the rotary tube cutter is capable of cutting round, square, and rectangular pipes of various sizes and thicknesses.

Main Configuration

	Name	Manufacturer/Brand
Ⅰ	Mechanical part
1	Body	Pipe welded bed
2	Beam	Steel structure
3	Table	Sawtooth
4	Guide rail	TAIWAN HIWIN
5	Rack	TANWAN XINYUE
6	Screw	TAIWAN TBI
7	Rotation axis	Yes
Ⅱ	Circuit
1	Drive	CW
2	Reducer	SHIMPO
4	Electrical element	SCHNEIDER
5	Cabinet	Igoldencnc Independent cabinet
Ⅲ	Oil-way
1	lubrication system	Automatic oil filling
Ⅳ	System control and software
1	Control system	Starfire controller
Ⅴ	选配
1	Marking head
2	Drill head

Production Facility

International Shipping Around the World

The plasma cutting machines provided by our company include flat plasma cutting machine, plate and tube integrated plasma cutting machine, square tube plasma cutting machine, portable plasma cutting machine, round tube plasma cutting machine, gantry plasma cutting machine.

Do you have a thought to DIY or buy an affordable CNC Plasma Cutter? We’ll provide you with the competitive CNC Plasma Table with expert customer service to satisfied your requirements.
