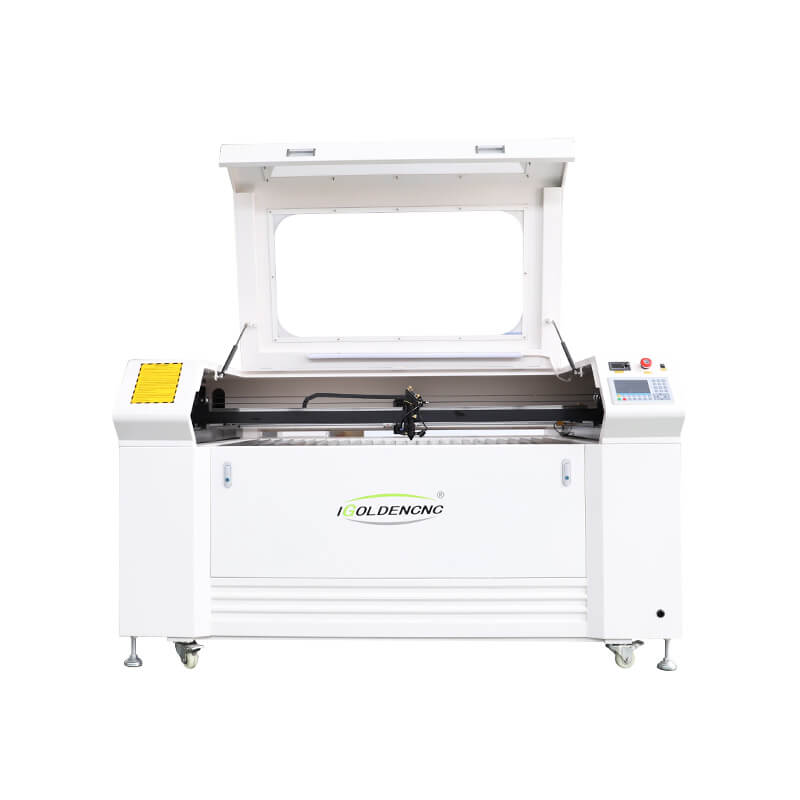

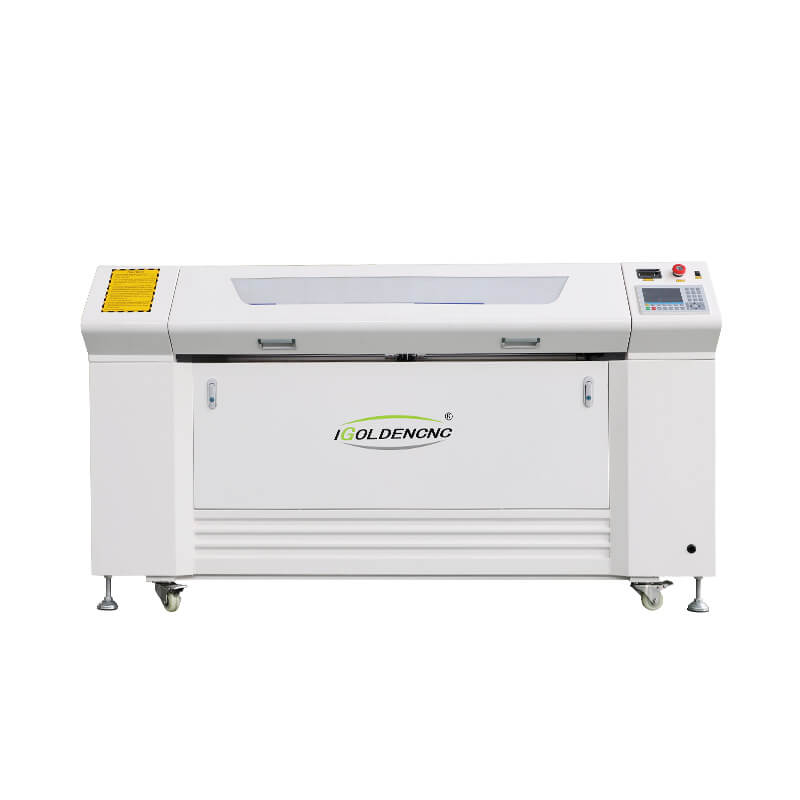

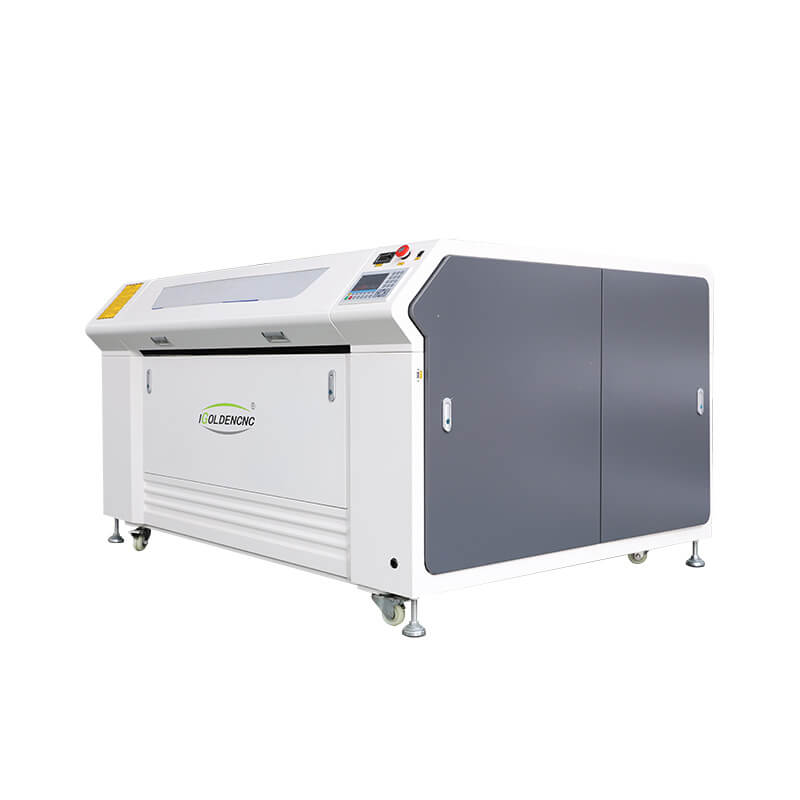

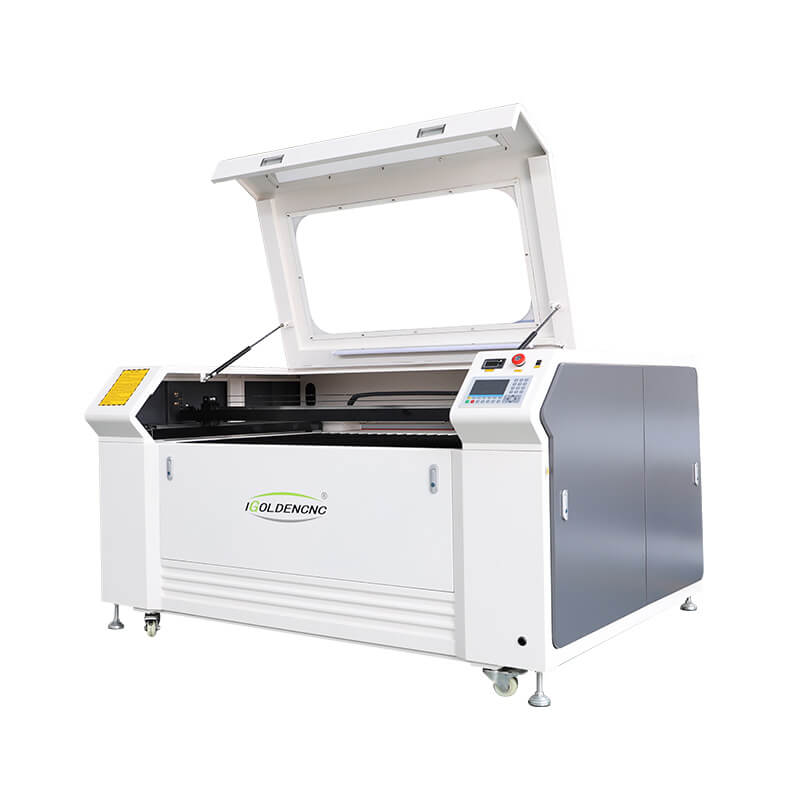

Closed CO2 Laser Engraving Cutting Machine

Rated 1.00 out of 5 based on 1 customer rating

(1 customer review)

CO2 Laser Cutter & Engraving Machines, CO2 Laser Cutting Machines and Engraving Machines ideal for Industry and Education – for cutting / engraving materials such as acrylics, woods, paper/card, fabrics and more.Suitable for cutting a variety of sheet metal, cut smooth, no burr. Inexpensive laser cutting machines, the preferred machine for metal processing.

Send Inquiry Chat Now

Category: Co2 Laser Engraving Machine

Description
Reviews (1)

IGL-C1390

Co2 Laser Engraving and Cutting Machine

A CO2 laser cutting machine is a professional automatic engraving and cutting system using a 1064μm CO2 laser beam to etch and cut wood, MDF, plywood, paper, leather, fabric, textile, resin, plastic, acrylic, rubber, crystal, glass, ceramics, stone, and more non-metallic materials. It relies on the power to drive the carbon dioxide gas laser tube to emit beam, with reflectors, the beam is transmitted to the cutting head, and then the focusing mirror converges the beam on a point, and this point can reach a very high temperature, thus the excess material is instantly sublimated into gas, which is sucked away by the exhaust fan, so as to create a cut. It is used to engrave and cut in clothing, fashion, garment, shoes, bags, toys, embroidery, electronic appliances, molds, models, arts, crafts, advertising, decorations, packaging, and printing.

Carbon dioxide laser is a gas molecular laser, the working substance is CO2 gas, auxiliary gases are nitrogen helium, xenon and hydrogen, etc., because the energy conversion efficiency of this laser is as high as 25%, it is often a high-power output laser, carbon dioxide laser wavelength 10.6 microns, is impossible to see infrared light, good stability, widely used.

Laser Engraving and Cutting Machine Advantages

1. Wide range of application, both metal and non-metal can be engraved and marked.

2. There are no requirements for the working environment, and mass production is possible without protection.

3. Laser engraving machine is also more accurate.

4. The processing effect is the same, and the products processed in the same batch are consistent.

5. The laser engraving machine is relatively small and does not take up space.

6. The engraving speed is also very fast, fonts, QR codes, and barcodes are all available.

TECHNICAL PARAMETER

Model	iGL-C-1390
Working area	1300mm x 900mm
Laser power	W2/W4/W6/W8
Laser type	CO2 sealed laser tube, water-cooled
Cooling way	Water cooling CW3000/5000/5200
Engraving speed	0-60000cm/min
Cutting speed	0-30000cm/min
Power supply	220V/50Hz, 110V/60Hz,
Laser energy control	1-100% software Settings
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, Photoshop, AutoCAD, Tajima
Driving system	3-phase stepper motor with decelerator
Air assist	Air pump
Dichroic Cutting	Yes
Optional part	Red light pointer
Applicable material	Suits, Textile, Fabric, Cloth, Jeans, Leather, Acrylic, Wood, Rubber, Paper, Rubber, Dual Color Board, etc…

Get Price!

Laser cutting head

Precision cutting can be adjusted according to the height of the material to be cut to ensure smooth cutting process and effective adjustment of the spot size.

CO2 Laser tube

Using Beijing RECI laser tube, high-end, stable performance, uniform spot distribution, high work efficiency.

Worktable

Stainless Steel Crawler Steel Mesh Platform

Control System

Display preview graphics and processing status, can run independently, and work stably and reliably.

Application of Co2 Laser Cutting Systems

Applicable Materials:

Affordable laser wood cutters are used for engraving and cutting variety types of wood, MDF, plywood, wood bamboo, acrylic, organic glass, crystal, wood plastic, garments, paper, wood leather, fabric, rubber, ceramic, glass, and other nonmetal materials.

Applicable Industries:

Affordable wood laser cutters are applied to custom woodworking, wood sign making, wood crafts making, 3D wooden puzzle cutting, wood letter cut, wood earrings cutting, wood panel cutting, acrylic cutting, fabric cutting, leather cutting, toys making, computer embroidery cutting, mould making, advertising and building decoration, packaging and printing, paper products cutting.

Contact Us Today to Get Price!

Fiber Laser Cutting Machine Buyer Guide

How Much Does It Cost?

When you consider investing in a CO2 laser cutter, one of the frequently asked questions for everyone is does it make economic sense for your business? How much will you pay for it and how much time and cost can it actually save for your business? CO2 laser cutter prices range from about $3,000 to $20,000+ depending on its features and laser powers, and the table size your projects required, as well as the considerations beyond cost.

A small entry-level CO2 laser cutter starts from $3,600 used for home shop, while some hobby lasers can be as expensive as $7,800 with higher powers used for small business. The industrial carbon dioxide laser cutting machines cost anywhere from $6,000 to $19,800 used for commercial use.

What materials can a CO2 laser cutter cut?

A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.

Can I use this laser cutter for acrylic and fabric?

Yes, this CO2 laser cutter can cut many materials, including acrylic sheet, fabric, cloth, MDF, plastic. It can also engrave patterns on acrylic sheets.

Can the CO2 laser cutter cut metal?

Yes, but with some conditions. The laser power of this CO2 laser cutter must be greater or equal to 130W. Besides, the laser head shall be a mixed type, which means that it can cut both metal and non-metal materials. For example, a 130W CO2 laser cutter can cut 1mm carbon steel and 1mm stainless steel.

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

CO2 laser cutting and engraving machine is designed to cut and engraving most non-metal materials. For example, wood, rubber, PVC, polywood, plexiglass, paper, MDF, mat board, leather, felt, fabric, EVA rubber, cloth, acrylic, ABS, etc. The popular power of CO2 laser engraving and cutting machine is: 75w, 90w, 100w, 130w, 150w, 300w,etc.
