IGOLDEN CO2 Laser Engraving Machine Laser power 60/80W

One of the major advantages of CO2 laser cutting and engraving machines is their precision. They can make very fine cuts and engravings with high accuracy, making them ideal for creating intricate designs and patterns. They are also very versatile, able to cut and engrave a wide range of materials with varying thicknesses and densities.

Send Inquiry Chat Now

Category: Co2 Laser Engraving Machine

Description
Reviews (0)

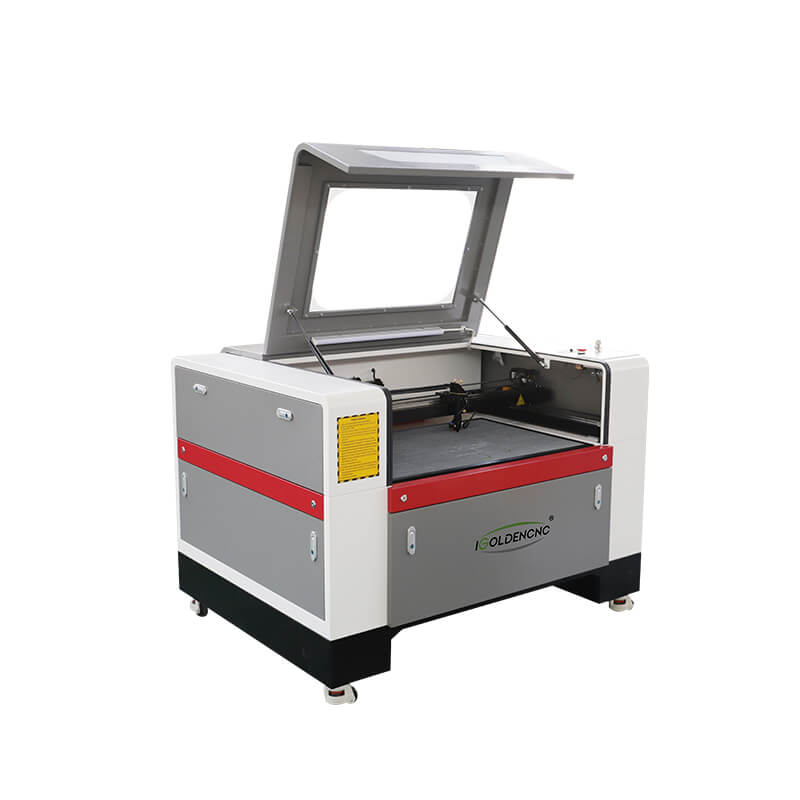

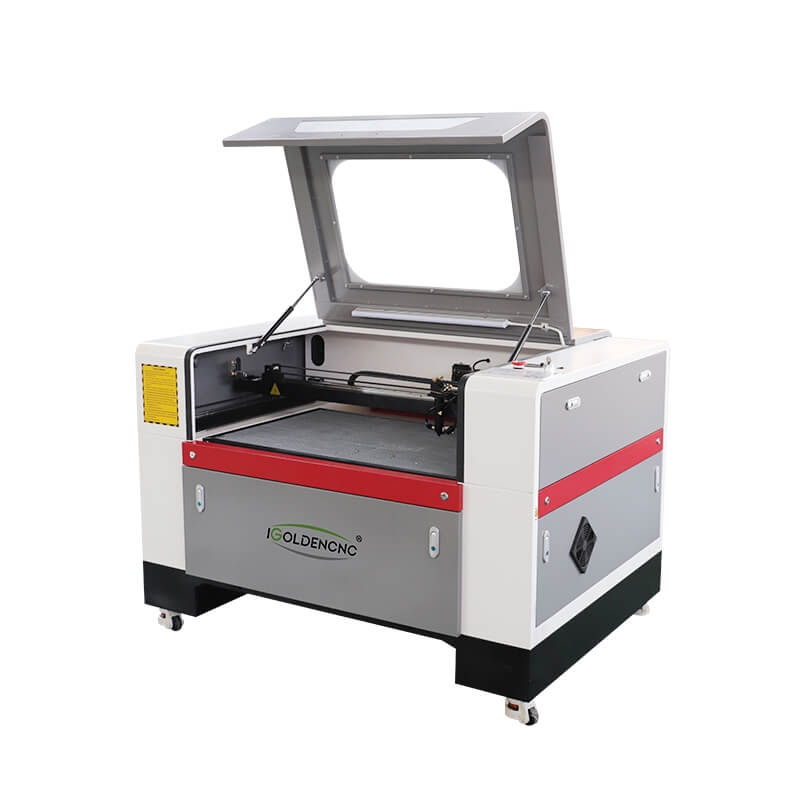

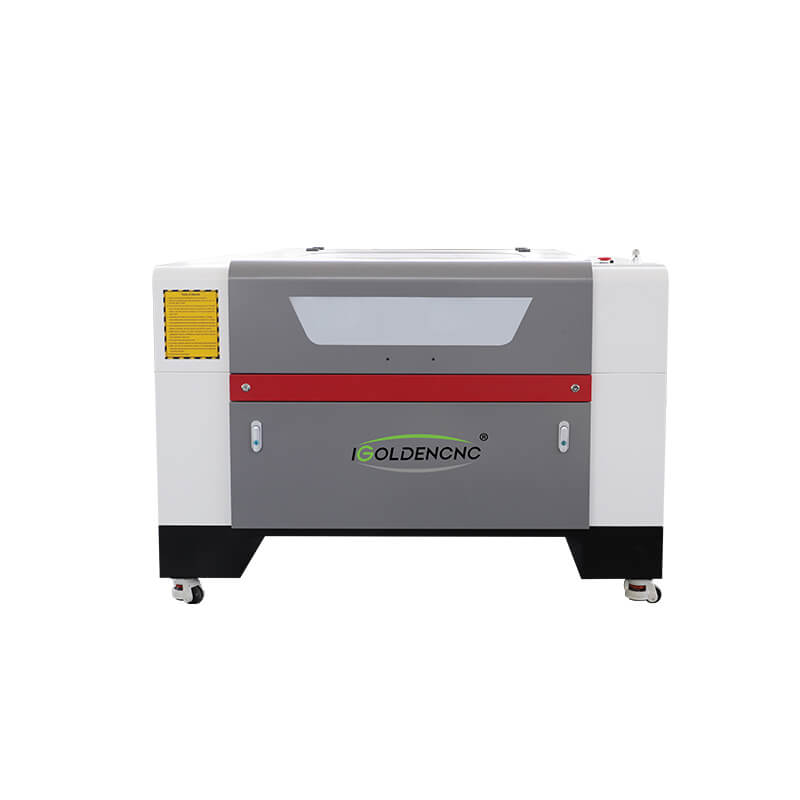

iGC-C 6090

Economical Co2 Laser Cutting Machine

This machine is an economical CO2 laser engraving machine and cutting machine. Equipped with a special machine protection cover, which not only guarantees the personal safety of the operator, and it also makes the entire processing production more environmentally friendly. Besides that the protective cover can be removed, so it can meet the different processing needs of users.

The engraving speed of the carbon dioxide laser engraving machine refers to the moving speed of the laser head. The high speed of the fiber laser cutting machine brings high production efficiency, and the speed is also used to control the depth of cutting. For a specific laser intensity, the slower the speed, the cutting or the greater the depth of engraving, you can use the engraving machine panel to adjust the speed, or use the computer’s print driver to adjust, within the range of 1% to 100%, the adjustment range is 1%, iGOLDEN laser advanced motion control The system can make you still get super fine engraving quality when engraving at high speed.

Laser Engraving and Cutting Machine Advantages

◎High processing efficiency, 10 to 15 times that of manual engraving; high precision, low cost, and good printing effect;

◎The optimized design of the mechanical structure and the smallest overall size of the whole machine not only saves your precious space, but also the structure should not be deformed and the cutting precision is high;

◎Taiwan square linear guide, long life; ◎The use of patented technology makes the engraving effect of the rubber plate better, and it is not easy to burn;

◎Genuine laser engraving software, powerful; engraving and cutting can be carried out at the same time.

TECHNICAL PARAMETER

Model	iGL-C-6090
Working area	600mm x 900mm
Laser power	W2/W4/W6/W8
Laser type	CO2 sealed laser tube, water-cooled
Cooling way	Water cooling CW3000/5000/5200
Engraving speed	0-60000cm/min
Cutting speed	0-30000cm/min
Power supply	220V/50Hz, 110V/60Hz,
Laser energy control	1-100% software Settings
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, Photoshop, AutoCAD, Tajima
Driving system	3-phase stepper motor with decelerator
Air assist	Air pump
Dichroic Cutting	Yes
Optional part	Red light pointer
Applicable material	Suits, Textile, Fabric, Cloth, Jeans, Leather, Acrylic, Wood, Rubber, Paper, Rubber, Dual Color Board, etc…

Get Price!

Laser cutting head

Precision cutting can be adjusted according to the height of the material to be cut to ensure smooth cutting process and effective adjustment of the spot size.

CO2 Laser tube

Using Beijing RECI laser tube, high-end, stable performance, uniform spot distribution, high work efficiency.

Worktable

Stainless Steel Crawler Steel Mesh Platform

Control System

Display preview graphics and processing status, can run independently, and work stably and reliably.

Application of Co2 Laser Cutting Systems

The common processing materials of co2 engraving machine include acrylic, glass, wood, leather, cloth, plastic, two-color board, horn, cardboard, MDF, marble, and other non-metallic materials. And widely used in advertising processing, gift processing, packaging engraving, leather processing, fabric proofing, seal engraving, product marking, seal engraving and many other industries.

Contact Us Today to Get Price!

Fiber Laser Cutting Machine Buyer Guide

How Much Does It Cost?

When you consider investing in a CO2 laser cutter, one of the frequently asked questions for everyone is does it make economic sense for your business? How much will you pay for it and how much time and cost can it actually save for your business? CO2 laser cutter prices range from about $3,000 to $20,000+ depending on its features and laser powers, and the table size your projects required, as well as the considerations beyond cost.

A small entry-level CO2 laser cutter starts from $3,600 used for home shop, while some hobby lasers can be as expensive as $7,800 with higher powers used for small business. The industrial carbon dioxide laser cutting machines cost anywhere from $6,000 to $19,800 used for commercial use.

What materials can a CO2 laser cutter cut?

A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.

Can I use this laser cutter for acrylic and fabric?

Yes, this CO2 laser cutter can cut many materials, including acrylic sheet, fabric, cloth, MDF, plastic. It can also engrave patterns on acrylic sheets.

Can the CO2 laser cutter cut metal?

Yes, but with some conditions. The laser power of this CO2 laser cutter must be greater or equal to 130W. Besides, the laser head shall be a mixed type, which means that it can cut both metal and non-metal materials. For example, a 130W CO2 laser cutter can cut 1mm carbon steel and 1mm stainless steel.

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

CO2 laser cutting and engraving machine is designed to cut and engraving most non-metal materials. For example, wood, rubber, PVC, polywood, plexiglass, paper, MDF, mat board, leather, felt, fabric, EVA rubber, cloth, acrylic, ABS, etc. The popular power of CO2 laser engraving and cutting machine is: 75w, 90w, 100w, 130w, 150w, 300w,etc.
