High-power Fiber Laser Cutter With Exchange Table

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

iGR-E series laser cutting machine is a new generation of safe and efficient metal plate laser cutting equipment, can be widely used in stainless steel plate, carbon steel plate, aluminum plate, copper plate and other metal plate cutting, exchange platform to join, do not need to wait for cutting time, can maximize the production line rate, high cost performance, high precision, full function, easy to use.

The dynamic performance of the whole machine is good, the servo response is fast, the slit is small, and the thermal effect is small. This is a good choice.

Send Inquiry Chat Now

Category: Laser Cutting Machine

Description
Reviews (1)

iGR-E Series

Exchange Platform Plate Laser Machine

The dual-worktable fiber laser cutting machine comes standard with a fast exchange platform, which is convenient for loading and unloading. The plate cutting and loading and unloading can be carried out at the same time. The processing efficiency is high, the operating cost is low, and the equipment is affordable.It is the first choice for processing and manufacturing enterprises.

Exchange Table Fiber Laser Cutting Machine is equipped with two cutting pallets which can be automatically switched. When one is used for cutting, the other one can be loaded or unloaded with sheets.The laser cutter provides high cutting efficiency and precision, smooth cutting, clean, no burr, low material loss, small heat-affected zone and nearly no thermal deformation. It is suitable for large-scale continuous processing and is the preferred equipment for metal fabricators.

Features of Laser Cutting Machine With Exchange Table

1). Strong machine structure well processed for steel laser cutting machine, stable structure to guarantee high cutting accuracy and excellent cutting performance;

2). This best fiber laser cutting machine is equipped with double working table type structure, the table can be shifted quickly, greatly increasing the working efficiency;

3). The best fiber laser cutting machine takes famous parts from all over the world, such as Yaskawa/Panasonic Servo motor, Taiwan rack & pinion/guide rail, etc, greatly improving the working efficiency;

4). JPT and China Raycus/Maxphotonics fiber laser source for fiber laser cutting machine china, good beam quality, big cutting capacity and maintenance free essentially, working time can be 100,000 hours;

5). Professional control system/nesting software, advanced function and easy to learn, more flexible and efficient processing.

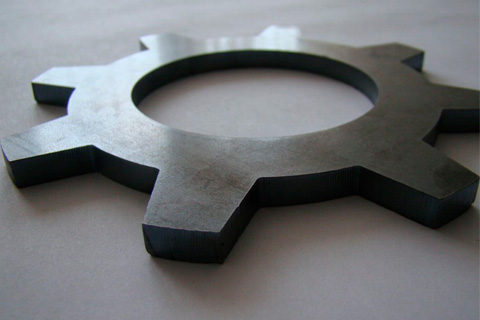

carbon steel fiber laser cutting machine

TECHNICAL PARAMETER

Model	iGR-E3015
Power	1000W/2000W/3000W
Table	3050*1500mm
X-axis travel	1500mm
Y-axis travel	3050mm
Z-axis travel	300mm
X/Y axis positioning accuracy	±0.03mm
X/Y axis repeated positioning accuracy	±0.02mm
X/Y axis max. moving speed	80m/min
Max. acceleration	0.8G
Max Weight Table	500kg
Voltage	380V/50-60Hz

Optional laser power 1500W-3000W; Optional countertop 3015/4015/6015.

Support customization.

Get Price!

Automatic exchange platform

It is welded by thickened rectangular tubes, annealed by large-scale gantry milling and natural aging treatment to eliminate internal stress.

Two platforms can exchange automatically with the exchanging time of 10s to 25s, which improve work efficiency greatly.

Max Laser Source

Small weight, light weight, easy integration, high performance, more stable processing; The optical path module has good protection and high safety.

Autofocus laser cutting head

Auto focus, without manual adjustment, the focus speed is increased by 10 times, and the repeatability is 50 microns.

Multi-level perforation, supports continuous focusing, and completes automatic cutting of plates of different thicknesses and materials.

Intelligent Control System

Automatic edge patrol, full tracking compensation, avoid waste of raw materials, and ensure cutting accuracy and quality.

One-key processing, batch processing can be set to realize batch processing and improve processing efficiency.

Application of Fiber Laser Cutting Machine

Sheet Metal Fiber Laser Cutting Machine Applicable Industries

Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

Fiber Laser Cutting Machine with Exchange Platform Applicable Materials

Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.

Contact Us Today to Get Price!

Fiber Laser Cutting Machine Buyer Guide

Advantages of CNC fiber laser?

1. Good beam quality. The waveguide structure of the fiber laser determines that it is easy to obtain a single transverse mode output. Besides, it is unlikely to be affected by external factors, which can achieve high brightness laser output.

2. High efficiency. The overall electro-optical efficiency of commercial fiber lasers is as high as 25%, which is conducive to cost reduction, energy-saving, and environmental protection.

3. Good heat dissipation. The CNC fiber laser uses thin rare earth element doped fibers as the gain medium, which has a very large surface area to volume ratio. This is conducive to heat dissipation. The water-cooling method for high-power fiber laser can avoid the loss of quality and efficiency caused by the heat effect.

4. Compact structure and high reliability. Since the fiber laser uses fine and flexible fiber as the gain medium, it helps to compress the size and save cost.

5. Maintenance free. There is no optical lens in the resonant cavity of the CNC fiber laser. So it has the advantages of adjustment-free, maintenance-free, and high stability, which is incomparable to traditional lasers.

What Are Laser Cutting Systems Used For?

They are the most common automatic cutting tools used in a wide range of applications inlcluding personalization (customization), digital printing, medical technology, fab labs, education, architectural models, smart phones and laptops, computers & electronics, toys, watches, arts & crafts, awards, trophies, rubber stamps, packaging design, die cut, mold making, signs making, displays making, giveaways, electronics industry, automotive industry, signage, mechanical engineering, ball bearing, jewelry making, fashion & apparel fabrics, stencils, paper cards, car floor mats & liners, textile and garment industry, bar code serial numbers, watches, machining industry, data plates industry, packaging industry.

How Many Types of Laser Cutting Machines?

These tools are identified into metal cutters, wood cutters, fabric cutters, leather cutters, paper cutters, acrylic cutters, plastic cutters, foam cutters, paper cutters based on materials to be cut. These cutting machines are classified into fiber or CO2 laser machines based on sources. These kits are defined into handheld, portable, mini, small, tabletop, benchtop, desktop styles. The most common types of cutting tables include 2×3, 2×4, 4×4, 4×8, 5×10, 6×12 based on the workbench sizes. Before buying, take some measurements of your workshop space to ensure that it will fit, and buy the right cutting table. The cutting systems are divided into 3 axis types, 4th axis (rotary axis) types, 4 axis types, 5 axis types, flatbed cutters, tube cutters, home types, hobby types, die cutters, profile cutters, and industrial cutting systems based on applications.

Production Facility

International Shipping Around the World

IgoldenLaser is a professional laser cutting machine manufacture. In order to meet the market requirement for laser cutting machine, Igolden Laser now launch a new kind of CNC laser cutting machine. It has the two kinds of platform, that is the exchange platform to feed automatically, greatly improving working efficiency. This machine used plate welding structure . It can weld the steel plate with thickness of about 12 mm. The height of the exchange platform is high with chain-type transmission and dual rail, which can greatly save the time of feeding and unloading. Fully enclosed structure can effectively reduce the laser radiation. Since this kind of machine launched, it is widely praised by the customers at home and abroad.
