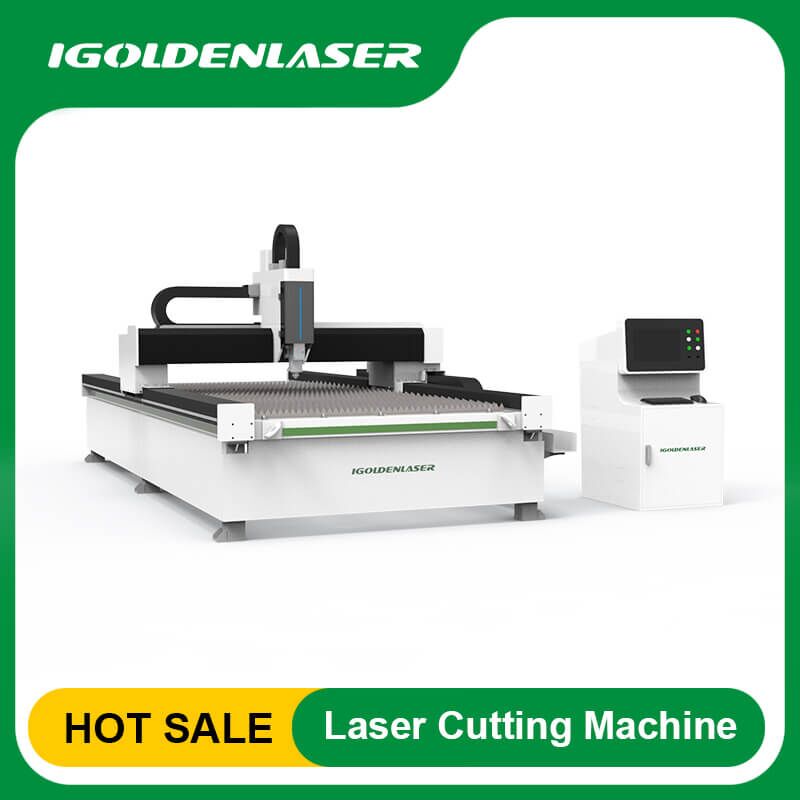

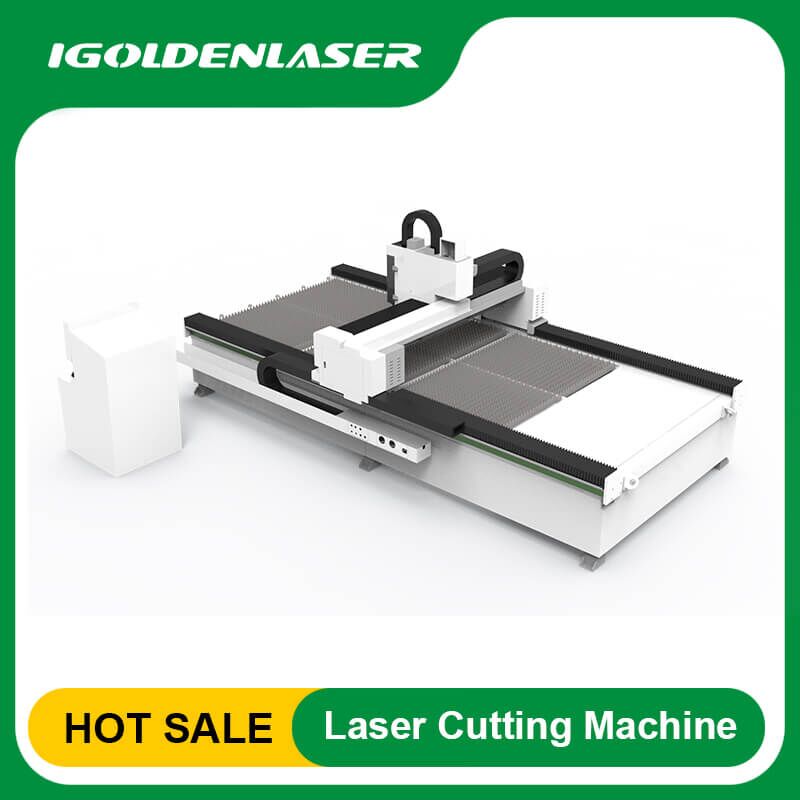

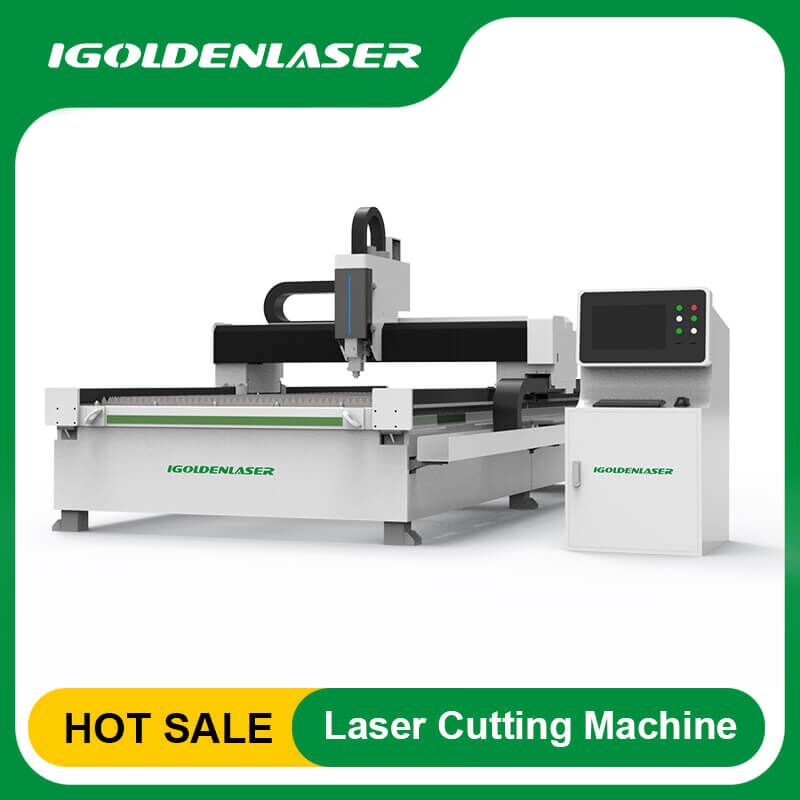

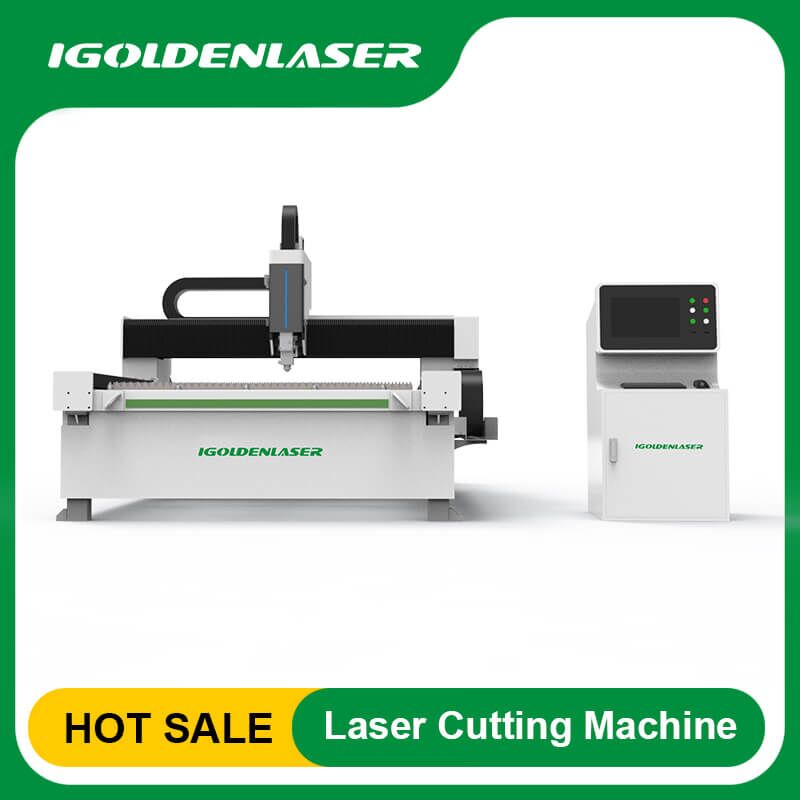

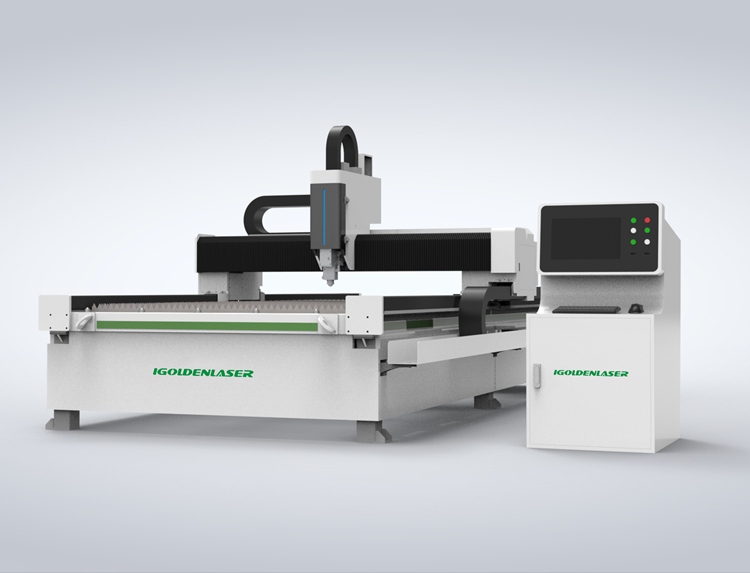

6KW Fiber Laser Cutting Machine

6000 Watt Laser Cutting Machine is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter range from 100~600um, can be customized from 800um~1000um.Mainly used in metal welding and cladding and other fields such as new energy, 3C, precision machining.

The dynamic performance of the whole machine is good, the servo response is fast, the slit is small, and the thermal effect is small. This is a good choice.

Send Inquiry Chat Now

Description
Additional information

6kw Laser Cutting Machine

6000W Sheet Metal Laser Cutting Machine is for metal fabrication, including steel designed, aluminum, titanium, alloy, brass, copper, and iron, with different laser powers (1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20KW, 30KW, 40KW). The affordable 6000W fiber laser cutting machine is for sale at a low price, with the best fiber laser-cutting system service and support.

These machines cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

Designed with a self-developed gantry structure and built from high-strength seamless steel, it provides outstanding rigidity and long-lasting durability. The high-temperature annealing process ensures the frame remains stable and free from deformation for over 20 years, even under rigorous use.

6 Kw Fiber Laser Cutting Machine Advantages

1. Versatile Workbench Sizes & Customization

Supports standard workbench sizes: 1500×3000mm, 1500×4000mm, 2000×4000mm, 1500×6000mm, 2000×6000mm, 2500×6000mm. Customizable cutting areas are available to meet specific needs.

2. Robust Gantry Structure for Stability

Adopts a gantry-style design with a high-quality steel welded bed and honeycomb high-strength crossbeams. Combined with advanced heat treatment and machining, it ensures long-term rigidity and operational stability.

3. Single Worktable for Efficient Operation

The single worktable design enables easy material loading/unloading during cutting, significantly improving processing efficiency.

4. Integrated Systems for Durability

Comprehensive cooling, lubrication, and dust collection systems ensure stable, efficient, and long-lasting machine performance.

TECHNICAL PARAMETER

Laser type	Fiber Laser Cutter
Laser working medium	Fiber
Laser wavelength	1060-1080nm
Rated output power	6000w
X-axis travel	1500mm
Y-axis travel	4000mm
Z-axis travel	120mm
Effective cutting range of flat plate	1500*4000mm
positioning accuracy	±0.02mm/m
Repeatability	±0.02mm/m
Maximum empty travel speed	100m/min
Power rating	380V 50Hz
Equipment power	11.25kw
Weight	950kg

IgoldenLaser innovates and upgrades the laser cutting technology accumulated over the years, launches a variety of advanced laser cutting equipment, provides efficient and professional laser sheet metal processing solutions for the sheet metal processing industry, and ultimately maximizes the value of customers.

Get Price!

Autofocus laser cutting head

Auto focus, without manual adjustment, the focus speed is increased by 10 times, and the repeatability is 50 microns.

Multi-level perforation, supports continuous focusing, and completes automatic cutting of plates of different thicknesses and materials.

Active collision avoidance, automatic detection of obstacles during the working process, effectively reducing the damage rate and saving maintenance costs.

Intelligent Control System

For thin plate cutting, the cutting process can be carried out on the edge of the thin plate, which can suppress vibration and improve the cutting effect.
Automatic edge patrol, full tracking compensation, avoid waste of raw materials, and ensure cutting accuracy and quality.
One-key processing, batch processing can be set to realize batch processing and improve processing efficiency.
Optimize the path, and easily realize functions such as continuous cutting from breakpoints, flying cutting, and leapfrog cutting.

Heavy-duty Welding Body

It is welded by thickened rectangular tubes, annealed by large-scale gantry milling and natural aging treatment to eliminate internal stress.

Higher tensile strength and dimensional stability.

Smaller processing errors and equipment loss.

Anti-deformation and anti-vibration enable the laser cutting machine to operate with high precision for a long time.

Max Laser Source

High beam quality
High power, high efficiency
High reliability and long service life
Extended programming interface

Application of Fiber Laser Cutting Machine

The laser metal cutting machine is widely used to cut various metal sheet products in the advertising, craft, decoration, and other industries. It is suitable for cutting carbon steel, stainless steel, aluminum, brass, and copper parts, signs, crafts, logos, letters, etc, and has been widely used in the processing of metal sheet fabrication, steel furniture, fire pipes, automotive, fitness equipment, agricultural and forestry machinery, food machinery, advertising, electrical cabinets, elevators and other industries.

Fiber Laser Cutting Machine Buyer Guide

6KW Fiber Laser Cutting Material Thickness

	Thickness（mm）	Speed（m/min）	Focus position	Cutting height（mm）
Carbon steel (Q235B)	1	25-32	0	1
	2	20-27	-1	1
	3	12-15	-1.5	0.5
	4	7-8.5	-2	0.5
	5	5.7-6.8	-2.5	0.5
	3	3.6-4.2	+5	0.8
	4	3.3-3.8	+5	0.8
	5	3-3.6	+5	0.8
	6	2.7-3.2	+5	0.8
	8	2.2-2.5	+6	0.8
	10	2.0-2.3	+7.5	0.8
	12	1.9-2.1	+7.5	0.8
	14	1.4-1.7	+9	1
	16	1.2-1.4	+9	1
	18	0.7-0.8	+12	0.3
	20	0.5-0.6	+4	0.8
	20	0.6-0.7	+13	0.3
	22	0.45-0.5	+4	0.8
	22	0.5-0.6	+13	0.3
	25	0.4-0.5	+14	0.3
Stainless steel (SUS304)	1	35-45	0	0.8
	2	23-32	-1	0.5
	3	15-18	-1.5	0.5
	4	9-13	-2	0.5
	5	7-8.5	-2.5	0.5
	6	4-5.5	-3	0.5
	8	3-3.8	-4	0.5
	10	1.8-2.1	-6	0.5
	12	1-1.3	-7.5	0.5
	14	0.85-1.1	-9	0.5
	16	0.6	-10.5	0.3
	18	0.5	-12	0.3
	20	0.3	-14	0.3
Aluminum (6061)	1	30-37	0	1
	2	22-27	-1	0.5
	3	13-18	-1.5	0.5
	4	9-11	-2	0.5
	5	5-6.5	-3	0.5
	6	3.6-4.2	-3	0.5
	8	1.8-2.1	-4	0.5
	10	1-1.3	-4.5	0.5
	12	0.7-1	-5	0.5
	14	0.5	-5	0.3
	16	0.4	-8	0.3
Brass	1	25-32	0	1
	2	17-21	-1	0.5
	3	12-15	-1	0.5
	4	8-9.3	-1.5	0.5
	5	4.5-5.5	-2	0.5
	6	3.2-4	-3.5	0.5
	8	1.5-2	-5	0.5
	10	1	-6	0.5
	12	0.7	-8	0.3
Copper	1	20-27	-0.5	1
	2	10-13	-1	0.5
	3	7-9	-2	0.5
	4	4-5.2	-2	0.5
	5	3	-3	0.5
	6	2	-4	0.5

Max China MFSC 6000W Laser Source

High-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter range from 100~600um, can be customized from 800um~1000um. Mainly used in metal welding and cladding and other fields such as new energy, 3C, precision machining.

Laser Cutting Machine Software

For thin plate cutting, the cutting process can be carried out on the edge of the thin plate, which can suppress vibration and improve the cutting effect.
Automatic edge patrol, full tracking compensation, avoid waste of raw materials, and ensure cutting accuracy and quality.
One-key processing, batch processing can be set to realize batch processing and improve processing efficiency.

Optimize the path, and easily realize functions such as continuous cutting from breakpoints, flying cutting, and leapfrog cutting.

Future Trends in Metal Laser Cutting Technology

Higher Power and Efficiency
As technology advances, we can expect to see metal laser cutting machines with even higher power and efficiency. This will allow for faster cutting speeds, thicker cutting capabilities, and lower energy consumption.
Automation and Integration
The future of metal laser cutting will likely involve greater automation and integration with other manufacturing processes. Machines will be able to communicate with each other and with other production systems, enabling seamless production flows and increased productivity.
Advanced Materials
As new materials are developed, metal laser cutting machines will need to adapt to cut and shape these materials. This may involve the development of new laser sources, cutting heads, and software to handle materials with unique properties.
Miniaturization and Portability
There is also a trend towards miniaturization and portability in metal laser cutting technology. Smaller, more portable machines will allow for on-site cutting and customization, reducing transportation costs and increasing flexibility.

Contact Us Today to Get Price!

Weight	1500 kg
Model	iGR-L
Brand	iGOLDENLASER
Working Size	30351500mm,40351500mm
