Large Format High Power 1000W-30000W CNC Metal Sheet Plate Laser Cutting Machine

Large Format Metal Sheet Plate Laser Cutting Machine

Large-area fiber laser cutting machines use a modular design, quickly expand metal cutting regions, and reduce transportation costs. It can realize the timely processing of various graphics and characters and is user-friendly and straightforward. Customized formats are supported. The maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.

  • G series large format flat plate laser cutting machine, heavy welding bed, ultra-high load bearing, to ensure maximum operating accuracy; 12m full plate cutting, fearless large plate, ultra-high power, up to 30000W, efficiency doubled, long-term batch stable cutting thickness of 20mm or more thick plate, a wide range of processing materials;
  • Used to cut a variety of thin metal sheet, high-quality cutting carbon steel plate, stainless steel plate, can also cut aluminum alloy plate, galvanized plate, aluminum plated zinc plate, thin brass plate and other metal materials;
  • Support customization

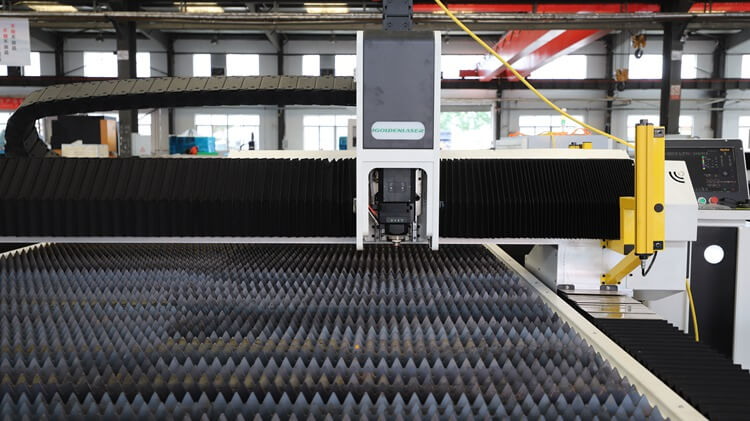

Ultra Large Format Metal Sheet Plate Laser Cutting Machine

High strength welded bed

  • Thickened steel welded, large planer milling annealing treatment and natural aging treatment to eliminate internal stress.Higher tensile strength and dimensional stability.
  • Smaller processing errors and equipment loss.

Anti-deformation and anti-vibration enable the laser cutting machine to operate with high precision for a long time.

Large Format Laser Cutting Machine Feature

> Automatic lubrication system

Regularly and quantitatively provide lubricating oil for the equipment to ensure the high-speed operation of the laser cutting machine, with abnormal alarm and liquid level alarm functions. This system greatly improves the cutting accuracy and effectively prolongs the service life of the transmission mechanism.

> Grating protection system

The warning barrier is automatically activated during the operation of the equipment. When people and objects enter the grating barrier, a signal is sent to stop the operation of the equipment to avoid personal injury and ensure safe production.

> Intelligent alarm system

Intelligent stroke protection, automatic monitoring of the operating range, installation of international machine tool standard limit springs, automatic alarms for equipment abnormalities, and push to the operation interface through the control center, reducing potential safety hazards and maintenance costs.

Thick plates are used in the middle of the platform to bear the load. After the material is loaded, the load-bearing of the plate directly acts on the whole bed, and the overall load-bearing capacity of the machine is twice that of the corresponding machine in the same industry. At the same time, the middle thick plate support has the advantages of small heating area and large heat dissipation area, so as to avoid thermal deformation of the platform.

Application Materials:

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Metal Sheet Plate Laser Cutting Machine sample

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Large Format Medium and Low Power Fiber Laser Cutting Machine advantages

1.Oversized processing format
The maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.

2.High-strength split plate welding bed
Optimize the transportation plan so that it can be loaded into the general container of 20’GP and 40’HQ. Reduce the transportation cost, and the transportation cost is only 1/3 of the frame container transportation.

3.Split frame support table
Reduce the load of the bed structure, decrease the impact of material rushing on the bed structure, ensure the accuracy of the machine, and improve the loading weight of the table.

4.Subdivided Fluid Domain Dusting
The smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control, increases suction, and removes smoke to the greatest extent.

5.Replaceable Independent burn-proof sheet metal
Reduce the erosion of slag injection on the bed and improve the life of the bed.
