Small Tube Laser Cutting Machine
Tube laser cutting machine is specially designed for metal tube cutting laser cutting machine. It can cut round tubes, square tubes, oval tubes, rectangular tubes and irregular tubes. It is equipped with a special cutting operating system, the system is simple to operate, high precision, professional and stable, suitable for professional profile cutting, widely used in sports equipment, oil pipelines, chemical equipment and other industries.

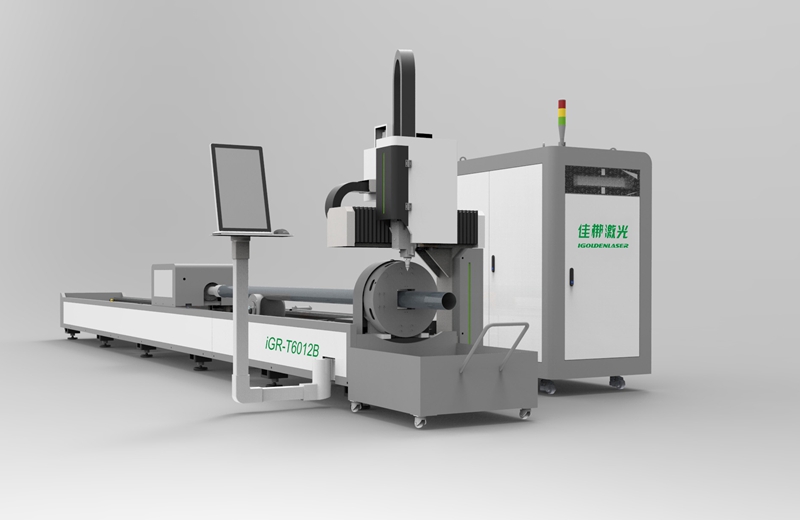

Small Tube Laser Cutting Machine
Small tube laser cutting machine is designed to be compact and space-efficient, making them suitable for workshops or facilities with limited space. The exact size and footprint can vary depending on the specific machine model and manufacturer.

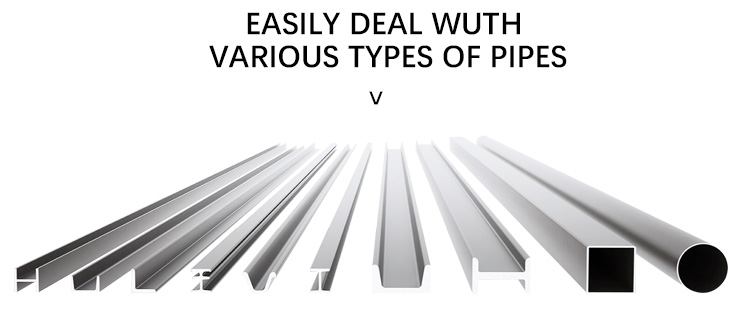

These machines can cut a wide range of materials, including metal tubes and pipes made of stainless steel, carbon steel, aluminum, brass, and copper.
Small tube laser cutting machines come with advanced features such as CNC capabilities and software integration. This allows for automated cutting processes and the ability to program and reproduce specific designs easily.
Small tube laser cutting machines offer a range of cutting options. They can perform straight cuts, bevel cuts, miter cuts (angled cuts), and even 3D cutting on tubes with complex geometries. Some machines may also have the capability to perform additional operations such as drilling, tapping, and marking on the cut tubes.
No Waste of Material
Equipped with four chucks, the cutting cost is saved without wasting materials.
Pneumatic Chuck
Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision.
Specialized Laser Head
The slender nozzle allows the laser tuber cutter to avoid interference and cut various types of tubes, including special-shaped tubes like H-Beam, P-Beam, I-beam, etc.
Small Tube Laser Cutting Machine Product Configuration
| Technical index | Parameter | ||
| Model | T6012B | T6016B | T6024B |
| Max. processing range | φ10-φ120 square tube□10-120 | φ10-φ160 square tube□10-160 | Φ10-φ240 square tube□10-240 |
| Min. surplus | 200mm | ||
| Y-axis positioning accuracy | ±0.03mm | ||
| X/Z axis repeated positioning accuracy | ±0.02mm | ||
| Max. moving speed | 100m/min | ||
| Max. acceleration | 1.0G | 1.0G | 1.2G |
| Max. load of chuck | 100kg | 180kg | 400kg |
| Chuck power mode | Full pneumatic self-centering chuck | ||
| Optional pipe length | 3 meters and 6 meters are standard | ||
| Add automatic loading | NO | ||
| Input power | 380V/50-60Hz | ||
Metal Tube Laser Cutting Machine
Laser cutting ensures high precision and accuracy in metal tube cutting. The focused laser beam allows for precise and clean cuts with minimal distortion. The machines can achieve tight tolerances and produce complex shapes, angles, and patterns on the tubes. Metal tube laser cutting machines can handle various tube shapes, including round, square, rectangular, and oval profiles. They can cut straight or angled edges, chamfers, holes, slots, and other geometries as per the design requirements.
