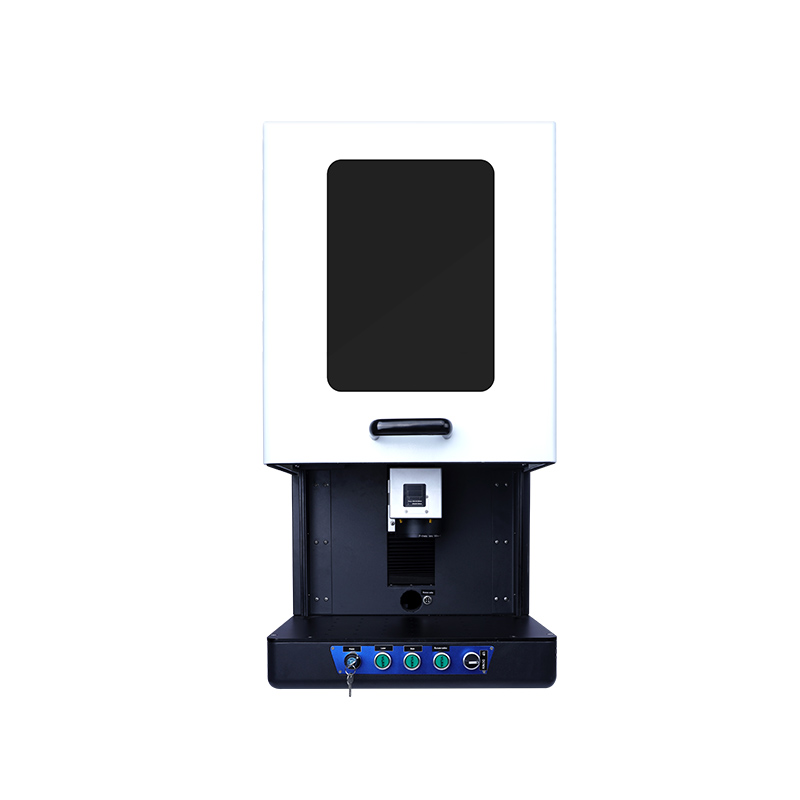

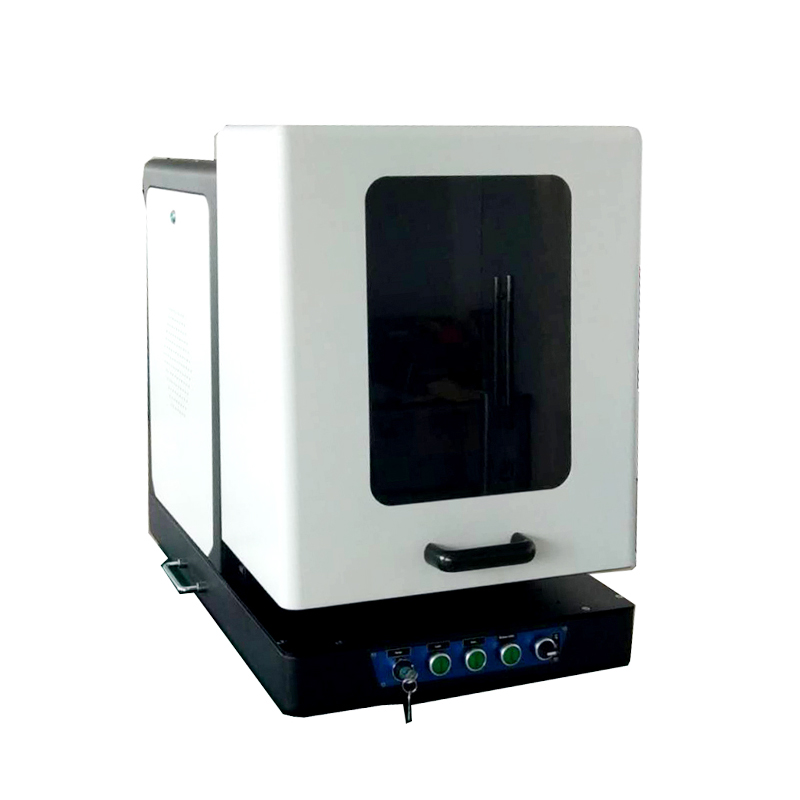

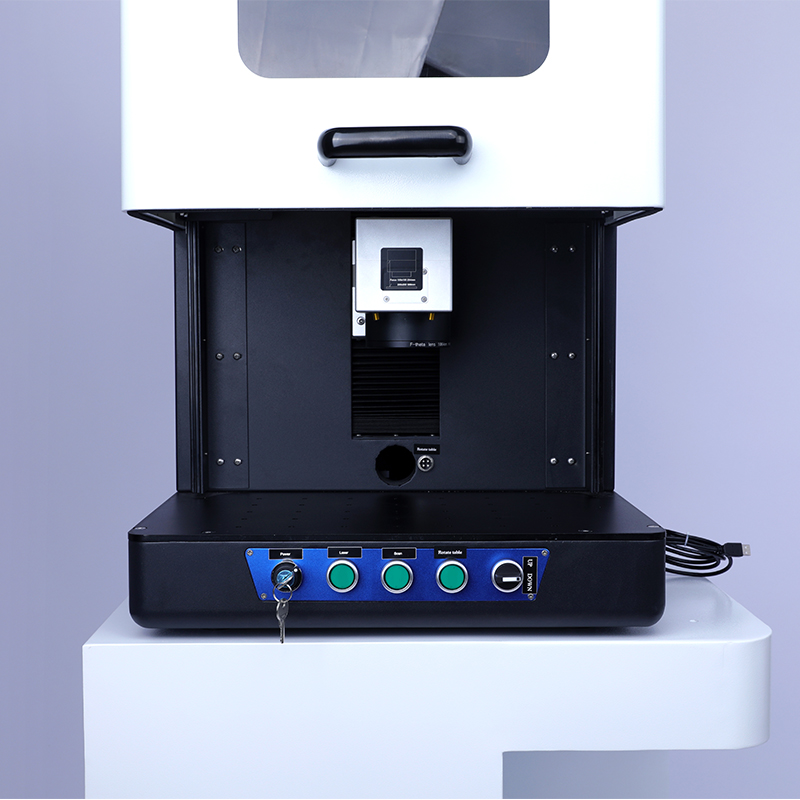

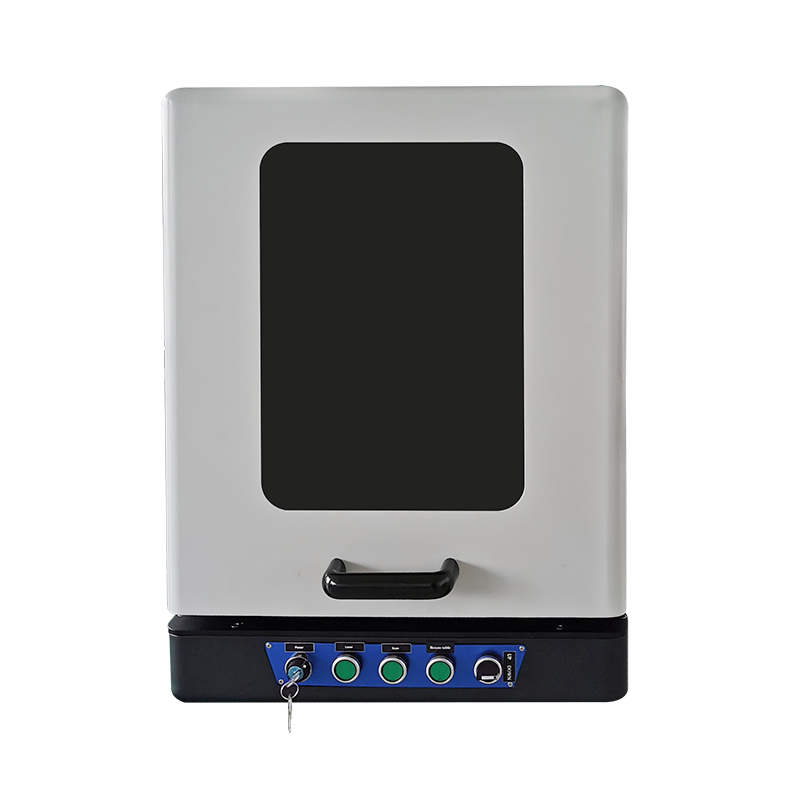

30w 50w 20 Watt Mini Laser Marking Machine

IGOLDEN laser designs and manufacturers 2D and 3D (3-axis) fiber and CO2 galvanometer based laser marking and engraving solutions.Widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronics and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco and military affairs, etc. Field graphics and text marks, and mass production line operations.

Send Inquiry Chat Now

Category: Laser Marking Machine

Description
Reviews (0)

iGR-L(P)

Laser Marking Machine

Mini laser marking machine integrates five core components such as fiber laser, high-speed galvanometer, power supply, Intel industrial computer and genuine marking system.

This mini laser marking machine realizes the integration of multi-card into one card and card and multi-source power supply into a single source power supply. It is a small-volume, lightweight, fast-speed, high-flexibility, cost-effective mini laser marking machine.

Mini Enclosed fiber laser marking machine with Auto Focusing 20W/30W/50W，Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.

Laser marking machines use a high-powered laser beam to make permanent marks on a variety of materials, including metals, plastics, ceramics, and glass. There are several different types of laser marking machines, including fiber laser, CO2 laser, and UV laser machines. Each type of machine uses a different type of laser and is best suited for marking certain types of materials.

Features of Enclosed laser engraving machine

1. Small size, beautiful and high-grade appearance, easy to move, air-cooled and maintenance-free.

2. The marking workbench is simplified and the degree of integration is higher.

3. The use of high-precision equipment accessories, accurate marking effect, flexible operation.

4. Using high-quality laser, marking speed is fast, without any operating system restrictions.

5. The optical path is completely closed, no pollution, no noise, no consumables, and long life.

Enclosed Fiber Laser Marking Machine Parameter Configuration

Output power：20W / 30W / 50W / 70W / 100W
Wavelength:1064nm
Beam Radiation Angle：≤2mrad
Modulation frequency range：20KHz~80KHz
Beam Quality：M2:1.2-1.8
Marking Depth：0-5mm(depending on the materials)
Maximum speed：8000mm/s
Repeat location accuracy：0.012mm
Minimum Line Width：0.017mm
Minimum Character：0.2 mm
Cooling Style：Air cooling
Laser power supply：<500W
Operating Voltage：110-220V, 50/60Hz
Environmental Requirement：0~35°C,humidity≤90%

Get Price!

Laser Module

Max/ Raycus/ IPG as your reference.

20w/30w/50w laser power as your requirement.

Stable operation, lifespan of more than 100,000 hours

Field Lens (Focus Lens)

Singapore Wavelength Focus Lens. Singapore imported high transmission field lens, small spot, high precision, fast speed, light transmittance above 99%.

Laser Protective Glasses

Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are highly efficient and safe goggles, which are comfortable, beautiful, safe and reliable

Rotation Axis

Marking and processing of arc surfaces, such as rings, thermos cups, etc., and an 8-station fixture is optional.

Application of Laser Marking Machine

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.

Contact Us Today to Get Price!

Production Facility

International Shipping Around the World

At IGOLDEN, we highly value customer feedback as it helps us to continuously improve and deliver exceptional products and services. We are always eager to hear from our customers and believe that such interactions are essential to our growth. We invite you to watch our video testimonials and witness the remarkable performance of our laser machines for yourself.

.Enclosed Fiber Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It’s very cost effective. It boasts fast marking speed and high marking precision. It’s widely used and well accepted in prevailing international market.
