Automatic Laser Cleaning Robot

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Robot laser cleaning machine, using high frequency and high energy laser pulse irradiation of the workpiece surface, the surface oil, rust or coating instant evaporation or peeling, high-speed and effective removal of cleaning object surface attached or surface coating, so as to achieve the process of clean cleaning object;

Send Inquiry Chat Now

Category: Laser Cleaning Machine

Description
Reviews (1)

IGCL-RC

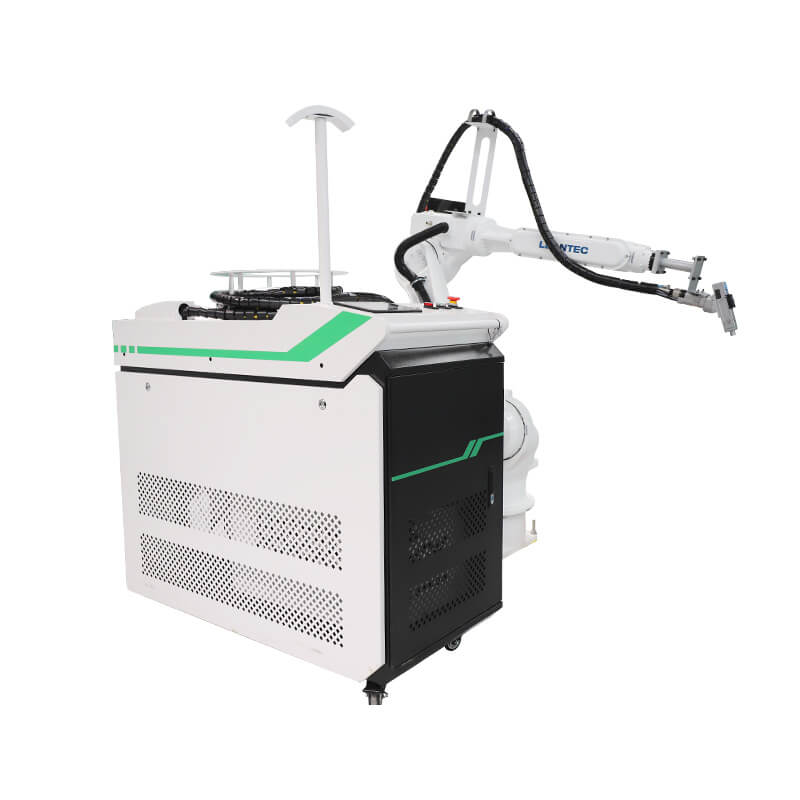

Robot Laser Cleaning Machine

.Robot laser cleaning machine, using high frequency and high energy laser pulse irradiation of the workpiece surface, the surface oil, rust or coating instant evaporation or peeling, high-speed and effective removal of cleaning object surface attached or surface coating, so as to achieve the process of clean cleaning object;

Six-axis robot linkage, high positioning accuracy, large processing range, easy to realize three-dimensional workpiece cleaning;This fully automated solution can process any part geometry as well as complex surfaces with several cleaning and texturing zones. It is designed to run 24/7 while maintaining very low operation costs.

The combination of laser cleaning and robot has the advantages of automation, intelligence and high flexibility, which can be used for the cleaning of complex surface materials, more efficient and fast.

Robot Cleaning Machine Advantages

Robot six-axis linkage, high positioning accuracy, large processing range, easy to achieve all kinds of workpiece cleaning;
High-end standard laser head, a variety of cleaning modes, can achieve precise position, precise size selective cleaning;
Using non-contact cleaning, non-contact cleaning, no damage to the parts matrix, fast cleaning speed, high precision;
No chemical cleaning solution, no consumables, safety and environmental protection;
They are used in automobile manufacturing, machining, electronic processing, heritage restoration, die and mold industry, shipping industry, food processing, petrochemical industry, etc.

TECHNICAL PARAMETER

Model	iGCL-RC- 1500	iGCL-RC- 2000	iGCL-RC- 3000
Laser power	1500W	2000W	3000W
Laser wavelength	1080±10nm
Robot	SYNTEC cleaning robot
Max. load on wrist	20KG
Repositioning accuracy	±0.08mm
Run-length	0-300mm
Focal length	500-1000mm
Cleaning mode	Supports multiple cleaning modes (see corresponding system for details)
Voltage	220V±10%/380V±10%
Total power	≤8kw	≤10kw	≤12kw
Gross weight	268KG（Robor）+260KG（The Cleaning machine）
Remarks: Other brand robots can be customized

Get Price!

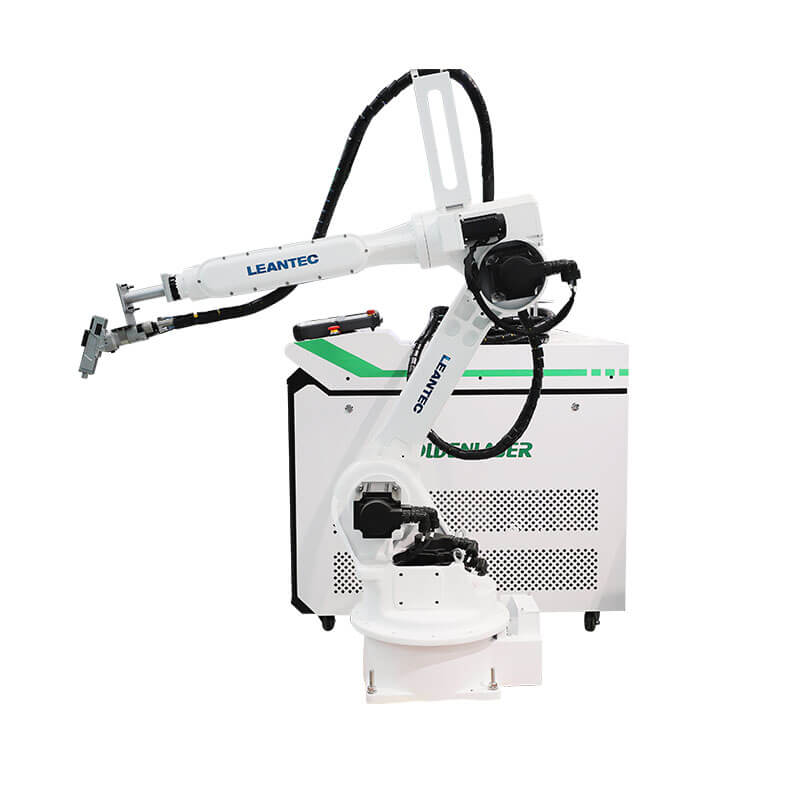

SYNTEC six-axis robot

The robot cleaning machine is ideal to process complex 3D parts such as engine blocks, transmission cases and wheels. By combining a robot arm with our unique autofocusing capabilities, the positioning of the laser head is greatly simplified, allowing you to apply precise cleaning and texturing patterns.

Laser cleaning head

It adopts a continuous laser dedicated to laser cleaning, which has almost no damage to the surface of the substrate, is stable, efficient, energy-saving, and maintenance-free, and has been verified by the market.The internal core structure is fully enclosed to prevent the optical part from being polluted and damaged.

HMI Control Panel

The standard HMI control panel provides direct access to laser parameters near the machine. You can: Set laser parameters Enter the manual operation mode to run validation tests or calibrate the laser Display information such as the system status and the operation mode.

Cooling system

Intelligent control, adaptive cold and hot dual temperature adjustment. The cleaning head and the laser source are cooled separately, the laser output is stable, the speed is fast and energy saving.

Application of Fiber Laser Cutting Machine

Laser cleaning machines are widely used in mold cleaning, industrial rust removal, old paint and film removal, pre-welding pretreatment and post-welding treatment, degreasing of precision parts, decontamination and oxide layer removal of electronic components, cleaning of cultural relics, etc. Widely used in metallurgy, moulds, automobiles, hardware tools, transportation, construction appliances, machinery and other industries.

Contact Us Today to Get Price!

Laser Cleaning MachineBuyer Guide

What are the features of the Robot Cleaning Machine?

The Robot Cleaning Machine features Laser Power, Dynamic Autofocus, X-Y Vision System, HMI Control Panel, and Cleaning Quality Validation.

What applications can the Robot Cleaning Machine be used for?

The Robot Cleaning Machine can be used for rust removal, oxide removal, paint removal, and more.

Can Laser Cleaning Remove Paint?

Yes, laser cleaning can remove paint from a variety of surfaces. Laser cleaning works by using a high-powered laser beam to evaporate or ablate the top layer of material on the surface, which may include paint. The energy of the laser beam heats up the paint and evaporates it, or breaks it down into smaller molecules, which can be easily removed.

How well laser cleaning removes paint depends on a variety of factors, including the type of paint, the thickness of the paint layer, the type of surface being painted, and the laser power and wavelength used. Certain types of paint may require multiple passes of the laser or higher power settings to remove completely, while other types of paint may be more resistant to laser cleaning. Additionally, safety precautions should be taken when using laser cleaning to follow proper procedures to avoid damaging the material being cleaned or causing injury to the operator.

Does the Robot Cleaning Machine have an advanced fume management system?

Yes, the Robot Cleaning Machine has an embedded fume management system that ensures the constant quality of the process and the safety of the work environment.

iGOLDENLASER is the world-leading laser equipment manufacturer and service provider with a worldwide sales and service network and a broad network.

Laser cleaning machines are an efficient and versatile solution for removing impurities from a variety of surfaces. They offer many advantages over traditional cleaning methods, including precision, speed, efficiency, and safety. With their ability to clean surfaces without harsh chemicals or abrasive materials, laser cleaners are also an environmentally friendly and cost-effective solution for businesses looking to maintain their equipment and facilities.
