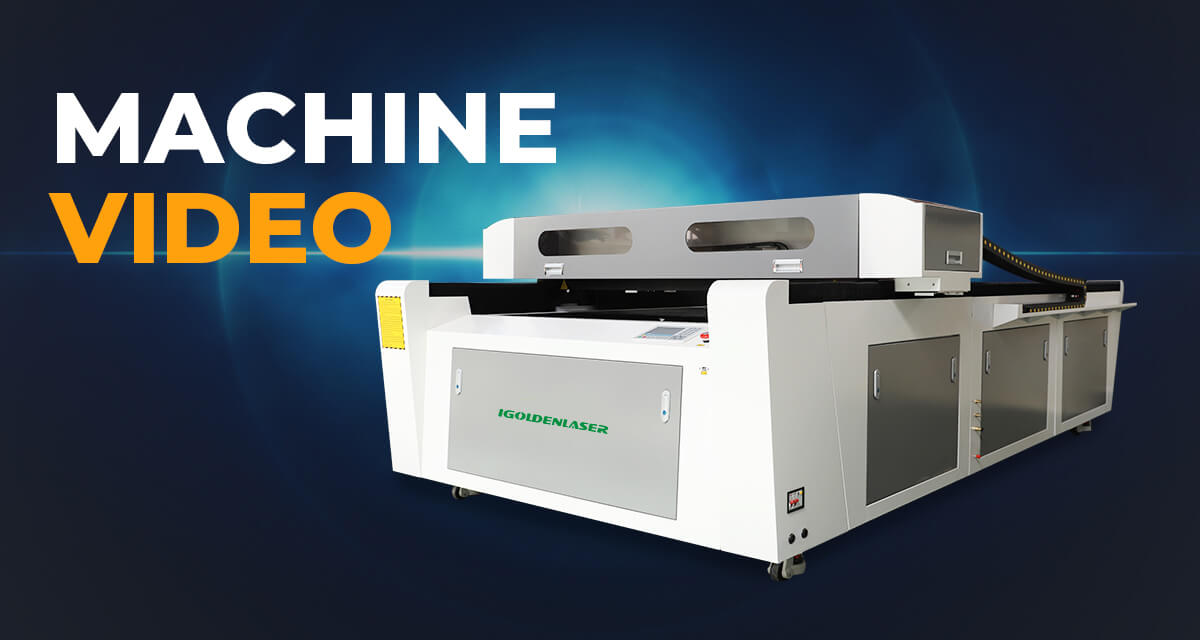

iGL-BM
FLATBED CO2 LASER ENGRAVING MACHINE
Cutting bed type CO2 engraving machine, the standard worktable size is 1325, which can meet the engraving and cutting needs of large-format panels such as wood and acrylic.

The CO2 flatbed desktop laser machine is the ideal solution for engraving and cutting a wide range of applications, including acrylic, wood, leather, paper, glass and ceramic materials.



With its compact size, yet generous working area, this CO2 laser cutter is a must have for small businesses, colleges, universities or even hobbyists.



The machine can engrave or cut non-metallic materials for countless number of projects. Whether you want to laser etch wine glasses for special occasions, cut wooden boards for architectural models, or cut acrylic sheets for custom made jewellery; this easy-to-use CO2 laser cutter and engraver is up for the job!



CO2 LASER ENGRAVING MACHINE EQUIPMENT PARAMETERS

Laser Type

Sealed CO2 laser tube

Laser Power

80W/ 100W/ 130W/ 150W/ 200W

Cutting Area

1300*2500mm

Cutting Speed

0 - 24000mm/min

Resetting Positioning Accuracy

±0.1mm

Working Voltage

AC 110 -220V±10%, 50-60Hz

Gross Power

<1,500W

Operating Temperature

0-45℃

Operating Humidity

5-95%

Minimum Shaping Character

English 1x1mm

Worktable

18cm lift platform

Driving System

Stepper

Cooling Mode

Water-cooling and protection system

Auxiliary Equipments

Exhaust-fans, air-exhaust pipe

Controlling Software

DSP control system

Compatible Software

CorelDraw/ AutoCAD/ Photoshop



CO2 Laser Cutting & Engraving Machine Sample Display

Nonmetal Sheet Laser Cutting

LASER TUBE

Brand:  RECI, 80-200w
Higher laser output power density, concentrated beam, uniform spot, high work efficiency, high cutting speed. The laser tube adopts special manufacturing technology, the laser beam becomes sharp after focusing, the marking line is narrow, the scale is deep, the resolution is high, and the picture quality is clear.



OFF-COMPUTER CONTROLLING SYSTEM

Humanized control system, easy to learn, intelligent and convenient.



INDUSTRIAL GRADE MIXED CUTTING LASER HEAD

The engraving speed is fast, the service life is long, and the clear effect is better.



HONEYCOMB COUNTERTOP

The default standard cellular countertop. The knife strip table can be selected according to the processing materials and requirements.



WIFI CONTROL

Engineers can remotely control computers and machines, adjust parameters and solve problems.

One PC can control multiple machines.



GUIDE

Brand: Taiwan HIWIN

High positioning accuracy, rolling guide rail, reduce wear and maintain accuracy longer.



WATER CHILLER

Dual-temperature dual-pump chiller, two-way water cooling, can quickly cool the laser body and laser head at the same time, one machine is multi-purpose, to ensure the safe operation of the machine 24 hours, visual temperature adjustment, automatic alarm, humanized design, ensure processing safety, save costs, and reduce Waste of space.

OPTIONAL

LASER PROTECTIVE GLASSES
Laser protective glasses can prevent or reduce laser damage to human eyes. Laser goggles are efficient and safe goggles, which are comfortable, beautiful, safe and reliable, and their optical safety performance fully meets the GJB1762-93 standard. Laser goggles include reflection type and absorption type, which can completely protect specific wavelength laser and glare. Suitable for various laser devices with visible light transmittance exceeding 70% and optical density above 5.0.

OPTIONAL

CCD
The CCD camera has 1.3 million pixels, which can capture the contour of the cutting object and automatically cut the edge. It is widely used in the trademark industry. With the personalized development of the clothing industry, the demand for special-shaped trademarks is increasing. The traditional cutting process cannot meet the demand, but the camera laser cutting machine is very suitable for high-end configuration, stable performance, and faster cutting of special-shaped trademarks.

OPTIONAL

AXIS OF ROTATION
The carbon dioxide laser engraving machine can be equipped with a rotating shaft to realize the engraving of the cylinder. Common diameters are 50mm, 80mm, 100mm, etc. Please inform the sales manager of your specific needs.

OPTIONAL

STAINLESS STEEL CRAWLER STEEL MESH PLATFORM

The carbon dioxide laser engraving machine can be equipped with a rotating shaft to realize the engraving of the cylinder. Common diameters are 50mm, 80mm, 100mm, etc. Please inform the sales manager of your specific needs.



OPTIONAL

AUTOMATIC FEEDING SYSTEM

No need for manual tentative feeding to improve work efficiency. Promote the smooth movement of the processed materials, ensure the smoothness of the materials, facilitate the stable work of the laser head, and improve the work stability.
